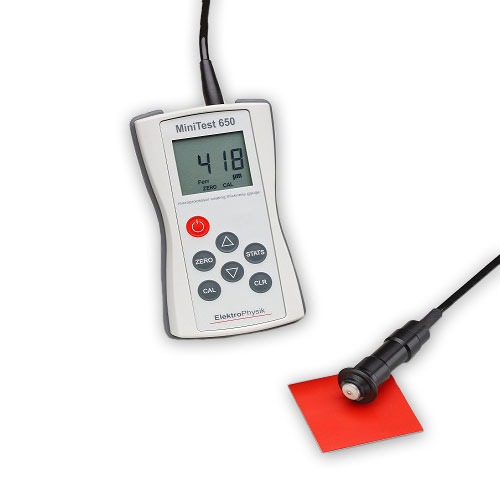

MiniTest 650 Coating Thickness Gauge


Made in Germany3 Models Available
MiniTest 650 F - Magnetic-induction sensor for measurements on steel substrates
MiniTest 650 N - Eddy currents sensor for measurements on non-ferrous metals
MiniTest 650 FN - Dual sensor for measuring on both, steel and non-ferrous metals

The rugged coating thickness gauge MiniTest 650 follows its long-time proven predecessor model MiniTest 600 in the line of gauges with a fixed external probe offering measurement of all non-magnetic coatings on steel and all insulating coatings on non-ferrous metals. It is especially designed to work in rough environments as well as on on abrasive surfaces, e.g. shot-blasted steel, plasma spray coated surfaces.

The MiniTest 650 is the ideal tool for any measuring task in the finishing industry.
The rugged and easy-to-handle thickness gauge combines extended mechanical life on the one hand and high accuracy on the other hand to meet the requirements of any professional user in the shipbuilding, automotive, bridge building, construction or other industry.

The battery-operated gauge features a backlit display and a one meter sensor cable. The newly developed one pole sensor is made of a wear and tear resistant carbide material to ensure a virtually unlimited life cycle under normal condition use.
An optimal ram- and impact-protection is provided through the rubber rimmed casing. Via a USB interface, the MiniTest 650 can be connected to a PC for on-line measurements or display of the statistics.


Features
  • Rugged and easy-to-handle coating thickness gauge
  • High repeatability
  • For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
  • Ram- and impact-protected through rubber rimmed casing
  • Sensor with newly developed wear-resistant carbide metal tip
  • Automatic identification of the substrate material
  • External sensor
  • Proven measuring methods
  • USB-interface to transfer measuring data to a PC
  • Statistical evaluation of readings
  • Coating thickness measurement up to 2 or 3 mm
  • Data transfer program Msoft7000 basic edition
  • DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge 127046

Complete Kit

The MiniTest 650 Coating Thickness Gauge is delivered as a complete kit with:

  • MiniTest with sensor and three batteries
  • Control standard(s)
  • Calibration standard(s)
  • Operating instructions
  • Soft pouch
  • Data transfer program Msoft7000 basic edition


Specifications
Measuring RangeModel F (steel)
0 … 3000 μm / 120 mils
Model N (non-ferrous metal)
0 … 2000 μm / 80 mils
Model FN (dual sensor)
0 … 2000 μm / 80 mils
Measuring Uncertainty± (2 % of reading + 2 μm) / ± (2 % of reading + 0.08 mils)
Minimum curvature radius convex5 mm / 0.2“
Minimum curvature radius concave25 mm / 1“
Minimum measuring areaØ 20 mm / 0.8“
Minimum base thickness:0.5 mm / 20 mils (F) / 50 μm / 2 mils (N)
Display4-digit screen data (11 mm)
Measuring unitsμm – mils user selectable
Calibrationstandard, 1-point and 2-point calibration
Statisticscalculated from maximum 9.999 readings, mean value, standard deviation, number of readings, minimum and maximum
Interface USB
Power supply3 Micro AAA batteries (for more than 10,000 readings)
Dimensions and weighthousing: 70 mm x 122 mm x 32 mm / 2.7” x 4.8” x 1.26”
sensor: Ø 15 mm x 62 mm / Ø 0.60” x 2.44”; 225 grams / 7.93 ozs
Ambient temperaturegauge: 0 to 50 °C / 32 ° to 122 °F
sensor -10 ° to 70 °C / 14 ° to 158 °F
Warranty1 year

Buy Now
Products

Product
Price
Quantity
132097
MiniTest 650 F Coating Thickness Gauge
€ 729,00
134096
MiniTest 650 N Coating Thickness Gauge
€ 819,00
134097
MiniTest 650 FN Coating Thickness Gauge
€ 904,00

Accessories

Product
Price
Quantity
133750
CIC-COATING
€ 139,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
