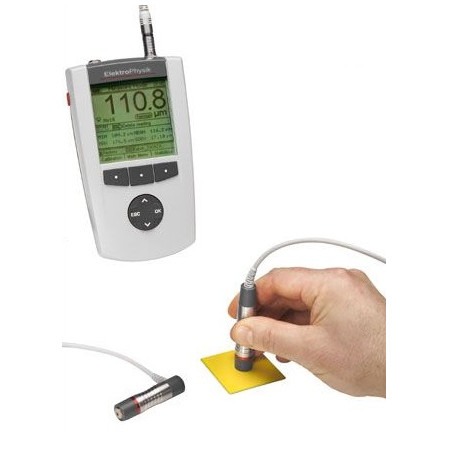

MINITEST 7400 High-precision Coating Thickness Gauge
Different sensors available for measuring up to 35 mmDesigned for measuring coatings, the MiniTest 7400 Coating Thickness Gauge is used for measuring non-magnetic coatings and insulating coatings on all metal substrates, like steel or non-ferrous metals. A five-point-calibration of the sensors ensures very precise measurements.
The intuitive menu control of the MiniTest 7400 enables high ease of use. For difficult measuring tasks the integrated configuration assistant simplifies the calibration and parameter settings – specific skills are not needed. The MiniTest 7400 is provided with the “MSoft 7 Professional” PC Software package to evaluate and export measuring results in various data formats (text documents, Excel spread sheets, PDF) to your PC. Multiple interfaces make connections with other peripheral devices possible. Application ranges vary by sensor type. Checkline Europe offers different kinds of standard and specific sensors, e.g. rugged sensors with a grout sealing for harsh environments. Application examples are among others the measurement of non-magnetic coatings on steel, paint, enamel, plastic coatings, small parts, thin coatings, rough surfaces or protective coatings in tanks and pipes, etc. Please refer to the sensor type description below for detailed information.
- For non-destructive measurements on all metal substrates
- Intuitive menu control
- PC software for configuration evaluation and data reports
- Data memory for up to 250,000 readings
- LC graphic display with multiple display options
- Configuration assistant for enhanced data management
- Wear resistant sesnsors for various measuring tasks
- Multiple statistic analysis functions
- SIDSP technology for accurate and reproducible readings
15 different sensors are available for the MiniTest 7400. Each sensor is available as a HD version for harsh environments. Please refer to the accessories for more details.
F-Probes for non-magnetic coatings on steel:
- F 0,5: 0 – 0,5 mm
- F1,5: 0 – 1,5 mm
- F1,5-90: 0 – 1,5 mm
- F2HD: 0 – 2 mm
- F5: 0 – 5 mm
- F15: 0 – 15 mm
- F35: 0- 35 mm
N-Probes for insulating coatings on non-ferrous metals:
- N0,2: 0 – 0,2 mm
- N0,7: 0 – 0,7 mm
- N0,7-90: 0 – 0,7mm
- N2,5: 0 – 2,5 mm
- N7: 0 – 7 mm
FN-Probes for both non-magnetic coatings on steel and insulating coatings on non-ferrous metals:
- FN1,5: F: 0 – 1,5 mm / N: 0 – 0,7 mm
- FN1,5-90: F: 0 – 1,5 mm / N: 0 – 0,7 mm
- FN5: F: 0 – 5 mm / N: 0 – 2,5 mm
The MiniTest 7400 will be delivered as a complete kit, including:
- MiniTest 7400
- MSoft 7 Professional Software
- Manual, available in English, German and French
- 4 AA cells, type LR06
- Plastic carrying case
MiniTest F-Probes Probes for non-magnetic coatings on steel
- Different probes for non-magnetic coatings on steel
- Measuring range up to 35 mm coating thickness
More details
MiniTest N-Probes Probes for insulating coatings on non-ferrous metals
- Different probes for insulating coatings on non-ferrous metals
- Measuring range up to 7 mm coating thickness
More details
MiniTest FN-Probes Sensors for non-magnetic and insulating coatings
- Different probes for both non-magnetic coatings on steel and insulating coatings on non-ferrous metals
- Measuring range up to 5 mm coating thickness
More details
| Max. number of batches | 500 |
| Max. number of storable readings | approx. 250,000 readings in total |
| Statistics (per batch) | number of readings, minimum, maximum, average, standard deviation, coefficient of variation, block statistics (norm-conforming/free configurable), process capability indices Cp and Cpk, histogram, trend |
| Calibration procedures according to international | ISO, SSPC, „Swedish“, „Australian“ |
| Calibration | up to 5 points, user adjustable offset value |
| Monitoring of limits | Visual and audible alarm for set limits |
| Measuring units | μm, mm, cm, mils, inch, thou |
| Operating temperature | –10°C … 60°C; 14°F … 140°F |
| Storing temperature | –20°C … 70°C; -4°F … 158°F |
| Power supply | 4 x AA (LR06) batteries, or optional power unit (90 – 240 V~ / 48 – 62 Hz) |
| Norms and standards | DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, AS3894; SS 1841 60, SSPC-PA 2, IMO-PSPC, ASTM B 244, B 499, D 7091, E376 |
| Display | 160 x 160 pixel LCD with backlight |
| Dimensions | 153 mm x 89 mm x 32 mm; 6 inch x 3.5 inch x 1.3 inch |
| Weight | 310 g; 11 oz. (gauge incl. batteries) |
Product
Product
Price
Quantity
Accessories
Product
Price
Quantity
134313
FN1.5/0.7 SIDSP/HP type sensor, HD version for rough environments F 0..1500 µm/N 0..700 µm
134315
FN5/2.5 SIDSP/HD type sensor, HD version for rough environments F 0..5000 µm/N 0..2500 µm
