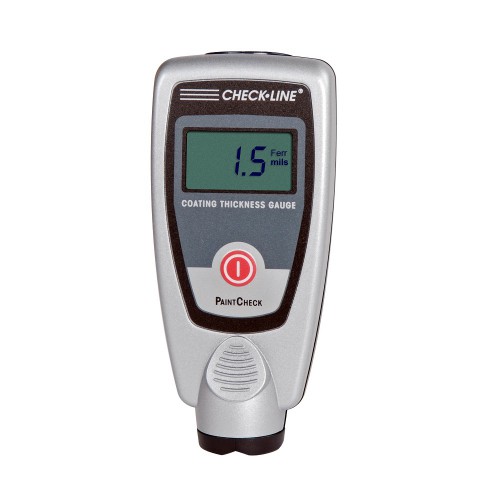

PaintCheck Paint Thickness Gauge


Made in GermanyPaintCheck provides fast, non-destructive coating thickness measurements on steel and non-ferrous metals. It is intended for use by car dealerships, auto body shops , insurance adjusters and similar users who only need a simple, one-handed basic gauge. The resolution is limited to 0.5 mils (5 µm) and should not be confused with our other "precision" gauges as this is adequate for basic thickness "checks".

Simply place the gauge on the surface to be tested. An accurate thickness reading appears almost instantaneously on the large, easy-to-read display—without scratching or damaging the surface in any way.

PaintCheck automatically selects the optimum measuring method (magnetic induction or eddy-current) to provide an accurate reading even for the thinnest coatings, on steel as well as on aluminum and other non-ferrous metals. No calibration is required.

In addition, PaintCheck provides valuable information about the coating structure, such as paint top coats or body fillers. For example, if the measured thickness value is significantly greater than the expected paint thickness, this would indicate the use of filler material or repainting.

Speed, accuracy, versatility and ease of use make PaintCheck a valuable tool for a wide range of paint inspection tasks.


Features
  • Large measuring range: 0 – 80 mils (0 – 2000 µm)
  • Simple, one-key operation
  • User-selectable units: mils or µm
  • Measures on steel, aluminum and non-ferrous metals
  • No calibration required

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces Fe - 1.5" (37 mm)
NFe- 3.0" (75mm)
Minimum Radius for Concave Surfaces 4” (100mm)
Minimum Radius for Concave Surfaces Minimum Headroom 5" (125mm)
Minimum Sample Diameter Minimum Sample Diameter 1.6" (40mm)
Minimum Substrate Thickness - F Minimum Substrate Thickness - F 30 mils (0.75mm)
Minimum Substrate Thickness - NFe 10 mils (0.25mm)

Specifications
RangeFe: 0 – 80.00 mils (0 – 2000 µm)
NFe: 0 – 80.00 mils (0 – 2000 µm)
Accuracy± 3 µm & 5% of reading
Display4-digit alphanumeric, 0.4” (10mm) height
Minimum Measuring Area1.6" x 1.6" (40mm x 40mm)
Minimum Substrate ThicknessFe: 30 mils (0.75mm)
NFe: 10 mils (0.25mm)
CalibrationFactory calibration
Operating Temp.32 °F to 122 °F (0 °C to 50 °C )
Surface Temp.5 °F to 140 °F (–15 °C to 60 °C )
Battery Type2 AAA 1.5V
Dimensions4.3" x 2" x 1" (110 x 50 x 25mm)
Weight3.2 oz (90 g)
Protection ClassIP 52 (proof against dust and dripping water)
StandardsDIN, ISO, ASTM, BS
Warranty1 year

Complete Kit
PaintCheck gauges are supplied as a complete kit, with gauge, plastic test shim, steel zero test plate, aluminum zero test plate, 2x AAA batteries, manual and soft carrying pouch.

Related Products

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Buy Now
Product

Product
Price
Quantity
130220
PaintCheck FN Coating Thickness Gauge
€ 395,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
