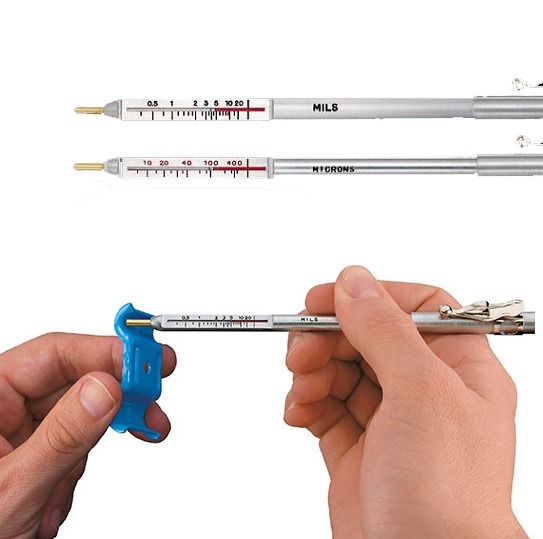

POSIPEN Magnetic Pull-Off Thickness Gauge
The PosiPen magnetic pull-off thickness gage measures non-magnetic coatings such as paint, enamel, plating, & hot-dip galvanizing on steel. Ideal for measuring on hard-to-reach surfaces and high temperature materials up to 230° C (450° F).
The PosiPen can be placed with pin-point accuracy on any location of the part to be measured which other Gages are not able to reach.
The PosiPen measures:
- on hot surfaces
- on small surfaces
- in different positions
The PosiPen has a very small unique magnet and therefore can measure on extremely small parts, on peaks and valleys.
The PosiPen has two scales, mils (inch) and microns (metric)
| Range | 0.25 to 20 mils / 5 to 500 microns |
| Tolerance | ±10% and 0.1 mil / 2.5 microns |
- Two (2) Year Warranty
- Made in the USA
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
Product
Product
Price
Quantity
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
