POSITEST PosiTest Magnetic Coating Thickness Gauge
4 ranges:
PosiTest-G: 0-200 microns
PosiTest-F: 0-2000 microns
PosiTest-GM: 0-8 mils
PosiTest-FM: 0-80 mils
Quickly check coating thickness on magnetic substrates
The PosiTest gauge is the perfect tool for fast verification of coating thickness on both small and large surfaces, without damaging the coating/paint.
The PosiTest magnetic coating thickness gauge was designed for the non-destructive measurement of nonmagnetic coatings such as paint, enamel, plastic, galvanizing, metalizing, plating, etc. on STEEL/IRON.
Easily measures small parts of almost any shape. Stable design with additional tail-end support. No annoying rocking during measurement.
Quickly check if minimum coating thickness is complied with
The rotating analog display can be set to the minimum required coating thickness. When this minimum value is set, the gauge is ready for quick minimum coating thickness verification and the gauge can be placed on the material.
When the button on top of the gauge is pressed and the probe clicks and stays down, magnetically attached to the material, the thickness of the material is smaller than the required minimum thickness. If the probe does not stay clicked down on the material, the thickness is greater than the required minimum thickness. Using this measuring method the operator can quickly verify large surfaces.
Quickly check if maximum coating thickness is complied with
The required maximum coating thickness can be verified just like the minimum required coating thickness gauge above. Set the rotating analog display to the maximum required coating thickness. Place the gauge on the material to be verified and press the button on top of the gauge. When probe clicks to the material and stays down or magnetically attached to the surface, the coating thickness is smaller than the set maximum value. When the probe does not magnetically attach and comes up again, the coating thickness is greater than the set maximum value.
Determine the actual coating thickness
When the operator would like to know the actually coating thickness on the substrate this can be rotating the analog display to the maximum available coating thickness value. Place the gauge on the material and press the button on top of the gauge. The probe clicks and is magnetically attached to the material. Next, turn the analog display toward the minimum value until the probe detaches from the material and jumps upward again. The value displayed on the display is the actual coating thickness.
- Permanently calibrated

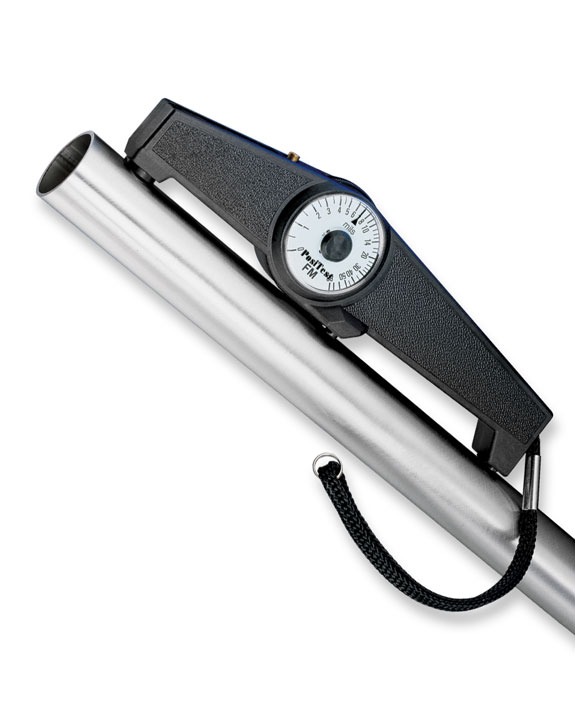

- “V” grooves in probe housing and Gage base allow correct positioning on cylindrical objects
- Highly wear resistant Carbide Probe for longest life and continuous accuracy
- Extra rugged housing, not affected by mechanical shock, water, acid or solvents
- GO/NO-GO button can be pre-set for rapid measurement
- Explosion Proof – Refinery safe
- Supplied with NIST Traceable Calibration Certificate
- PosiTest coating thickness gauge
- wrist strap
- neck / shoulder strap
- operating instructions
- high quality leather case with belt loops
Cic-Coating Calibration Coating Thickness Gauge
- Easy planning of calibration
- Short turnaround
- Possibility to adjust and repair
- In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.
More details
| Accuracy | GM: ±0.04 mils up to 0.8 mils ±5% of the reading over 0.8 mils FM: ±0.2 mils up to 4 mils ±5% of the reading over 4 mils G: ±1 microns up to 20 microns ±5% of the reading over 20 microns F: ±5 microns up to 100 microns ±5% of the reading over 100 microns |
| Ranges: | PosiTest-F: ±5 microns up to 1000 microns ±5% of the reading over 100 microns |
| Dimensions | 21,6 cm x 5,1 cm x 2,5 cm (L x H x W) |
| Warranty | 1 year |
| Weight | 173 gram (6.1 oz) |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
