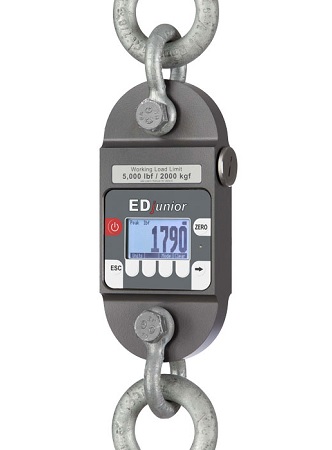

EDJUNIOR Digital Dynamometer
The EDjunior dynamometer gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.
Measurement Capabilities
The EDjunior provides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons.
- Accuracy - The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2%(full scale). This level of precision offers flexibility for use in a broad range of applications.
- Resolution - Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required of critical lifting applications.
Control Interface
The exclusive SOFTKEY interface provides direct access to setup and diplay functions without the typical confusing menu structure. The 6-digit-dot-matrix display features 1 inch(26 mm) high numerals for greater visibility.
High Strength, Low Weight
Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, Dillon has made the EDjunior an easy-to-position, highly mobile instrument with exceptional strenght. It offers an impressive factor of safety at all capacities.
Battery Operation
Power is supplied by two C-cell batteries that are easily accessable through a side loading port. Battery replacement, however, is a rare event. With the EDjunior's low power consumption, typical battery life is over 200 hours.
All Environments
With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use.
NIST Traceable - The EDjunior comes with a NIST traceable calibration certificate.
- Capacities from 1000-10000kg
- Broadest range of capacities and resolutions are certain to fit your needs
- Includes high strength case. Resists heavy blows.
- High specification materials on all load components. Heat treated to tight tolerances
- 2 Year Warranty
- 0.2% accuracy
- Largest safety factor for overload protection and long life
- Generous shackle openings mate with most hooks and hardware
- NIST Traceable Certificate Included
- CE Certified
| Model | Capacity | Resolution | Body Construction | |
| EDjr-1T | 1000 kgf 10000 N | 2 1 10 | Aircraft quality 2024 Aluminum 700% overload | |
| EDjr-2T | 2000 kgf 20000 N | 5 2 20 | Aircraft quality 2024 Aluminum 700% overload | |
| EDjr-5T | 5000 kgf 50000 N | 10 5 50 | Aircraft quality 2024 Aluminum 700% overload | |
| EDjr-10T | 10000 kgf 100000 N | 20 10 100 | Aircraft quality E4340 Alloy Steel 500% over |
Cic-Force Calibration Force Gauge
- Short turnaround
- Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
- Possibility to adjust and repair
More details
AP Dynamometer Mechanical Dynamometer
- Accuracy: ± 0.5% of full scale capacity for precise data.
- Broadest range of capactities and resolutions are certain to fit your needs
- Wide temperature range for use in nearly any environment (-50 to 140°F / -45 to 60°C)
More details
| Enclosure | Designed to NEMA4X/IP55 Suitable for continuous outdoor use. |
| Accuracy | 0.2% of capacity |
| Repeatability | 0.2% of capacity |
| Proof load | 150% of capacity |
| Safe Overload | 200% of capacity |
| Display | 128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys. |
| Display update rate | 2 times per second |
| Peak hold sampling rate | 10 times per second typical |
| Calibration | Traceable to the NIST. Calibration card included. |
| Battery life | 320 hours typical use with two C-cell alkaline batteries. |
| Operating Temperature | -20º to 60º C (-4º F to 140º F) |
| Included with instrument | Batteries, manual and calibration card. |
| Backlight | Configurable using backlight will consume more battery power, reducing battery life. |
| Warranty | 2 years |
| Weight | EDjr-1T 1.3 kg EDjr-2T 2.0 kg EDjr-5T 2.9 kg EDjr-10T 8.2 kg |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
