DTSB-DTXB Digital tension meter with wide rollers for tapes and bands
DTSB - DTXB Digital Tension meters with wide rollers for all types of textile tapes, bands, foils, fiber bundles, etc.

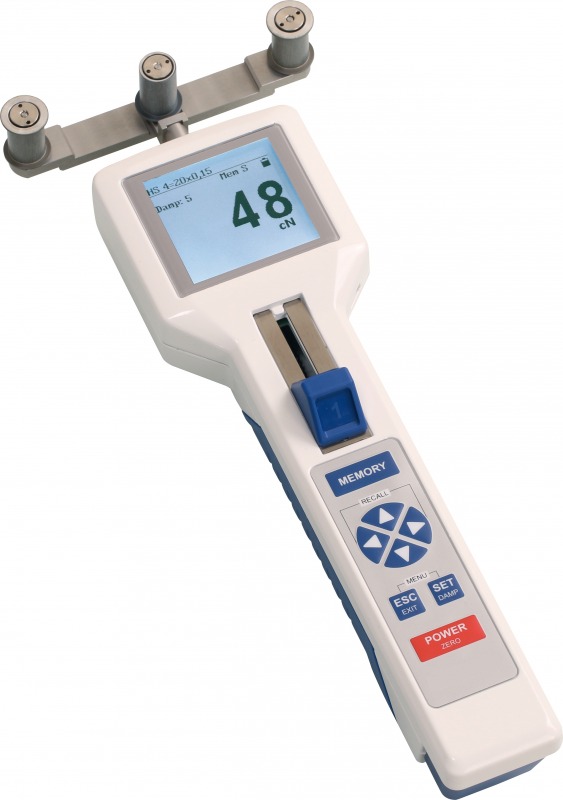

The digital tension meters DTSB and DTXB are equipped with special wide rollers, making them suitable for measuring all types of tapes and textile fibers. The hand sensors can be configured with rollers up to 41 mm width. Ten different models with ten different tension ranges available.
Typical applications:
- Textile ribbons
- Films
- Foils
- Fiber bundles
The DTSB is the base model and the DTXB is the advanced data-logging model that also provides additional functionality.
Additional features of the DTXB tension meter:
Advanced statistical features like:
Mode S: Statistical mode only
Mode H: Save the X-Y graph for later inspections in the data memory
Mode C: Continuous logging mode. User-definable measuring time and measuring series with 2 Hz
Mode F: Fast continuous logging mode. Like C with 1000 Hz
The DTXB tension meter provides 10 digits for user calibration, compared to 4 in the DTSB. It also has a data memory for 60,000 readings and a USB data output. Free software is included at no extra cost.
- Optional NIST-Traceable Calibration Certificate
- Dual-flanged outer guide rollers with various widths, from 7 mm to 30 mm (single-flanged rollers optional)
- For certain tension ranges and materials, it is possible to supply roller widths of 41 mm. Inquire.
- Large, backlight LCD-display with 3 different displays: numeric, numeric with live load bar, numeric with graph (time-tension)
- Display automatically rotates in 90° steps (or can be locked in any desired position)
- Built-in Diameter Compensator System is used to adjust the calibration curve for highest accuracy. Diameter is set with wheel and shown on display
- Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
- 4 Separate Calibration Material memory locations for custom calibrations (can be performed by end-user and saved with alpha-numeric name)
- Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation
- High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
- User-set Min and Max alarms with indication on LCD if reading is out of limits
- User-adjustable DAMPING is used to minimize tension fluctuations
- User-Selectable units of measurement: cN, daN, g, kg, N, lb
- Setup parameters can be password protected so they are not accidentally changed by the user
- Rechargeable Lithium Polymer battery lasts 40 hours (continuous use, approx)
- Rugged aluminum housing with rubberized handle provides a secure and comfortable grip
- Manufactured in Germany
- 1 year warranty
| Model | Range / Resolution* | Head Width** | Roller Widths (mm) | ||
| DTXB / DTSB-500 | 5.0 - 500 / 0.1 cN | 55 mm | 7, 10, 15, 20 | ||
| DTXB / DTSB-1000 | 50 - 1000 / 1 cN | 55 mm | 7, 10, 15, 20, 30, 41 | ||
| DTXB / DTSB-2000 | 100 - 2000 / 1 cN | 55 mm | 7, 10, 15, 20, 30, 41 | ||
| DTXB / DTSB-2500 | 150 - 2500 / 1 cN | 117 mm | 7, 10, 15, 20, 30, 41 | ||
| DTXB / DTSB-4000 | 200 - 4000 / 1 cN | 55 mm | 7, 10, 15, 20, 30, 41 | ||
| DTXB / DTSB-5000 | 250 - 5000 / 1 cN | 117 mm | 7, 10, 15, 20, 30, 41 | ||
| DTXB / DTSB-10K | 0.5 - 10 / 0.01 daN | 117 mm | 7, 10, 15, 20, 30 | ||
| DTXB / DTSB-20K | 1 - 20 / 0.01 daN | 167 mm | 7, 10, 15, 20, 30 | ||
| DTXB / DTSB-30K | 1.5 - 30 / 0.01 daN | 217 mm | 7, 10, 15 | ||
| DTXB / DTSB-50K | 2.5 - 50 / 0.01 daN | 217mm | 7, 10 | ||
| * Standard calibration based on measuring range and rollers width with a textile ribbon or foil. **Distance between outside guide rollers | |||||
| Order-Code | Line Speed vmax. … m/min | Roller Material |
|---|---|---|
| Tape roller 7 mm | 1000 | Hard-coated aluminium |
| Tape roller 10 mm | 1000 | Hard-coated aluminium |
| Tape roller 15 mm | 1000 | Hard-coated aluminium |
| Tape roller 20 mm | 1000 | Hard-coated aluminium |
| Tape roller 30 mm | 1000 | Hard-coated aluminium |
| Tape roller 41 mm | 1000 | Hard-coated aluminium |
| Code MH - Online Mounting | |
 |
To mount the gauge for online use, the housing can be equipped with mounting threads. There are to bolts with M5 female thread on the rear side. This feature cannot be installed afterwords. |
| Code WL - Wi-Fi Signal | |
 |
The DTXB can be equipped with a Wi-Fi module for WLAN data transfer. This feature cannot be installed afterwards. The Wi-Fi module is not licensed for all countries. Please contact us for further information! |
Tension meter DTSB-DTXB are delivered in a foam fitted carrying case, including the accumulator and the AC adapter with country adapters (EU, US, UK), the Certificate of compliance with the order 2.1 according EN 10204 free of charge as well as the manual.
| Accuracy: | For standard material from 5 % up to 100 % of FS: ± 0.5 % FS ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit |
| Overrange: | Approx. 10 % FS*, full scale, without accuracy guarantee |
| Overload protection: | 100 % full scale |
| Memory for material curves: | DTSB: 1 standard calibration plus 4 for customized calibrations DTXB: 1 standard calibration plus 10 for customized calibrations |
| Measuring units: | Force (switchable): cN, daN, g, kg, N, lb Thickness (switchable): mm, inch |
| Measuring principle: | Strain gauge bridge |
| Signal processing: | Digital, 16 bit A/D converter |
| Measuring frequency: | Max. 1 kHz (1000 measurements/sec.), intern 8 kHz |
| Measuring roller deflection: | Max. 0.2 mm |
| Display: | Graphic LCD |
| 3 different displays: | Numeric Numeric with graph (time-tension) X-Y-diagram |
| Display update rate: | Approx. 2 times per second |
| Memory: | MIN, MAX, PEAK, AVG and LAST |
| Damping: | Adjustable electronic damping (averaging) |
| Cal. Adjustment: | ± 10 steps in 1 % increment |
| Thickness compensation: | Max. 2.5 mm (not for all models) |
| Auto power off: | Approx. 3 minutes of non-use |
| Temperature coefficient: | Gain: less than ± 0.01 % FS* /°C |
| Zero point: | less than ± 0.03 % FS* /°C |
| Temperature range: | 10 – 45 °C |
| Air humidity: | 85 % RH, max. |
| Power supply: | LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h AC adapter 100 – 240 V AC,adapter (EU, USA, UK) |
| Replacement Charger: | USB-MINI-CHARGER |
| Housing material: | Die-cast aluminum |
| Housing dimensions: | As per above shown dimensions sheet |
| Weight, net (gross): | approx. 875 g (1550 g) |
| Output: | USB Output, data analysis software included |
| Specifications for DTXB, same as DTSB plus: | Data memory (60,000 values at 255 measuring periods), 4 memory modes with statistical evaluation |
Products
Product
138859
DTSB-5000-41 - Tension Meter Digital 500-5000 cN 41mm Rollers
137844
DTSB-10K-10 - Tension Meter Digital 0.5 - 10 daN 10mm Rollers
137168
DTSB-20K-20 - Tension Meter Digital 1 - 20 daN 20mm Rollers
138814
DTXB-5000-10 - Tension Meter Digital 500-5000 cN 10mm Rollers
136218
DTXB-50K-10 Tension Meter Digital 0.5 - 50 daN 10mm Rollers
Accessories
Product
133421
Code CF Special Topocrom® coating for carbon fibre (for roller widths of 10, 15, 20 and 30 mm)
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
