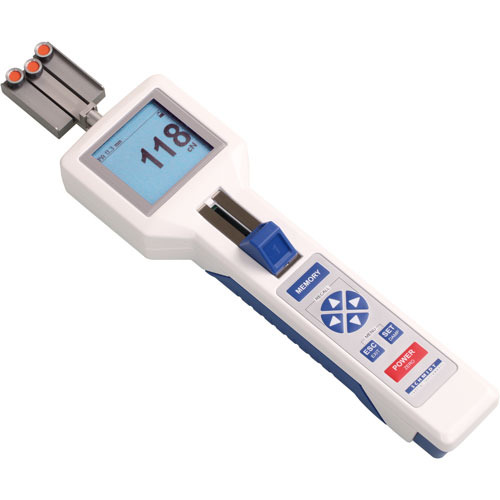

DTSE / DTXE Limited-Access Hand-Held Digital Tension Meter
4 Measuring Ranges available : from 1 - 200 cN to 20 - 2000 cN
The DTSE/TXE series of electronic tension meters have a small measuring head for narrow measuring points or threads running close together. They are thus ideal for the use in the textile industry up to max. 2000 tex or industry wires up to 0.5 mm Ø. Outstanding functions of the DTS/DTXE series tension meters include a rotatable display that can be adjusted and calibrated by the customer.
The DTSE is the standard version and the DTXE is the advanced version with Data Logging and USB Output. The DTXE (data logging) models come with memory storage for 60,000 data points and USB output with sample rates up to 1kHz. In addition, the Tension Inspect Software which displays real-time readings on a PC and allows for downloading of saved data is included. WiFi for wireless communication is available as an option.
- 4 Tension Ranges 1-200cN up to 20-2000cN
- 4 Material Calibration locations for customer calibrations
- Small measuring head of 64mm x 36 mm for measurements with limited access space
| Model | Tension Range | Resolution | Measuring Head Width* | Applications Textile Industry e. g. Yarn Count | Calibration Material PA* |
| DTSE/DTXE-200 | 1 – 200.0 cN | 0.1 cN | 36 mm | max. 200 tex | 0.12 mm |
| DTSE/DTXE-500 | 1 – 500.0 cN | 0.1 cN | 36 mm | max. 500 tex | 0.20 mm |
| DTSE/DTXE-1000 | 10 – 1000 cN | 1 cN | 36 mm | max. 1000 tex | 0.30 mm |
| DTSE/DTXE-2000 | 20 – 2000 cN | 1 cN | 36 mm | max. 2000 tex | 0.50 mm |
| * Width of bracket assembly ** Suitable for 95 % of applications | |||||
| Code MH - Online Mounting | |
 |
To mount the gauge for online use, the housing can be equipped with mounting threads. There are to bolts with M5 female thread on the rear side. This feature cannot be installed afterwords. |
| Code WL - Wi-Fi Signal | |
 |
The DTXE can be equipped with a Wi-Fi module for WLAN data transfer. This feature cannot be installed afterwards. The Wi-Fi module is not licensed for all countries. Please contact us for further information! |
The DTSE/DTXE tension meters are delivered in a kit in a foam filled carrying case including the tension meter, accumulator and AC adapter with country adapters (EU, US, UK), a certificate of compliance as well as the manual in German or English.
DXE Special tension meter for limited access space
- Turned-up outer finger edges guide the running filament into the roller grooves
- Special finger support located on the rear side reduces the effort to move the outer roller assembly
- Everything in operator's view:
- the guide rollers
- the measured material
- the readings
More details
DTS Series DTS Digital Tension Meter
- Large backlight LCD Display automatically rotates in 90° steps
- Integrated material thickness compensator and calibration fine tuning allow highest precision
- Selectable MIN and MAX values with optical alarm
More details
DTX Advanced Digital Tension Meter with USB-interface
- Automatically in 90° steps rotatable LCD Display
- Highest precision issued by built-in material thickness compensator and calibration fine tuning
- User defined MIN and MAX values with optical alarm
More details
| Order-Code | Line Speed vmax. … m/min | Roller Material |
|---|---|---|
| Standard | 900 | Hard-coated aluminium |
| Code K-Small | 2000 | Hard-coated aluminium |
| Calibration: | For PA from 5 % up to 100 % FS*: ± 0.5 % FS* ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit |
| Accuracy: | For PA from 5 % up to 100 % FS*: ± 0.5 % FS* ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit |
| Memory for material curves: | 1 for factory calibration plus 4 for customized calibrations |
| Measuring units: | Tension: cN, daN, g, kg, N, lb (user-selected) Thickness : mm, inch (user-selected) |
| Overrange: | Approx. 10 % FS*, full scale, without accuracy guarantee |
| Overload protection: | 100 % full scale |
| Measuring principle: | Strain gauge bridge |
| Signal processing: | Digital, 16 bit A/D converter |
| Measuring frequency: | Max. 1 kHz (1000 measurements/sec.), intern 8 kHz |
| Measuring roller deflection: | Max. 0.2 mm |
| Display: | Graphic LCD, Backlit (user-set: on/off/auto) |
| 3 different displays: | Numeric, Numeric with graph (time-tension) X-Y-diagram |
| Display update rate: | Approx. 2 times per second |
| Memory: | MIN, MAX, PEAK, AVG and LAST |
| Damping: | User-adjustable electronic damping (averaging) calculated by [X-Values OLD + Y-Values NEW] ÷ 9 |
| Cal. Adjustment: | ± 10 steps in 1 % increment |
| Thickness compensation: | Max. 2.5 mm (not available for all models) |
| Auto power off: | Approx. 3 minutes of non-use |
| Temperature coefficient: | Gain: less than ± 0.01 % FS* /°C |
| Zero point: | less than ± 0.03 % FS* /°C |
| Temperature range: | 10 – 45 °C |
| Air humidity: | 85 % RH, max. |
| Power supply: | Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter) |
| Housing material: | Die-cast aluminum |
| Weight, net (gross): | approx. 780 g /1460 g |
| Replacement Battery: | E08711-X |
| Replacement charger: | USB-MINI-CHARGER |
| Warranty: | 1 year |
| Data memory: | 60.000 values split up to 255 measuring positions |
| Memory modes: | 5 memory modes with statistical evaluation |
| Memory for material curves: | 10 Material Calibration locations for customer calibrations |
| Software: | Includes Tension Inspect Software at no additional charge; displays real-time readings on a PC or download stored data |
| Wi-fi: | Optional Wi-Fi for wireless communication to a PC |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
