DX2F Limited Access Tension Meter

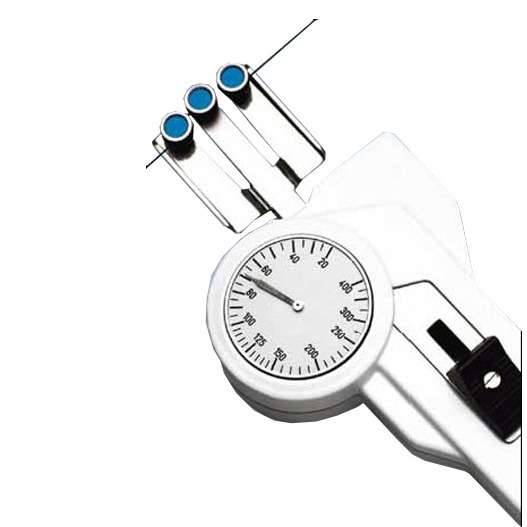

Long, flat fingers and miniature V-grooved rollers are used in applications where there is limited access space or where the running filaments are close together.
Measuring Head Dimensions
Head Width (X): 38 mm
Head Length (Y): 47 mm
- 22 mm distance between outer rollers permits a narrow access "window" of only 1/2" x 1 - 1/2".
- Rollers are rated for speeds up to 900 m/min. or, optionally, up to 2000 m/min (K).
- Turned-up outer finger edges guide the running filament into the roller grooves, eliminating snags behind the rollers.
- Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
- Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report
| model | |||||
| DX2F-3 | 3-30 grams | ||||
| DX2F-5 | 5-50 grams | ||||
| DX2F-12 | 10-120 grams | ||||
| DX2F-20 | 10-200 grams | ||||
| DX2F-30 | 20-300 grams | ||||
| DX2F-40 | 10-400 grams | ||||
| DX2F-80 | 100-800 grams | ||||
| DX2F-SP | 50-1000 grams | ||||
| DX2F-EX | 100-1000 grams | ||||
| DX2F-200 | 200-2000 grams |
| Accuracy | ± 1% of full scale or ± 1 graduation mark on scale |
| Diameter of Scale | 41 mm |
| Maximum Speed | 6000 m/min |
| Roller Material | Hard-coated aluminum (standard) Hardened steel (ST) Chromed Steel (w) Plastic (PL) |
| Housing Material | Die-cast aluminum |
| Dimensions | 225 x 90 x 44 mm (8.6" x 3.5" x 1.7") |
