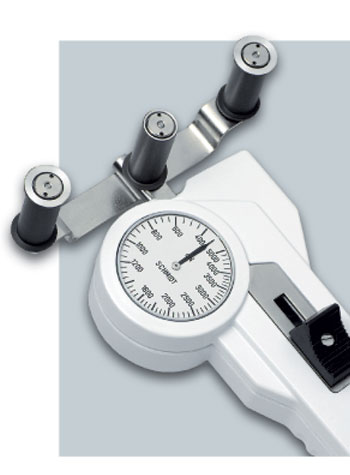

DXB Tension meter with Cylindrical rollers pointing toward the operator
Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
When selecting the instrument for your specific application, please keep in mind that:
1. Rollers of different widths are not interchangeable by the user.
2. The roller width should correspond with the width of the material to be measured. Otherwise incorrect measuring results may occur and the instrument may be damaged.
SCHMIDT has the solution to any tension measuring problem! Please contact us to discuss your application requirements.
To assist you in selecting the right tension meter for your specific application, please furnish:
- Kind and dimensions of the material to be measured
- Expected tension range
- Material sample of about 5 m
Note: This model does not include a material thickness compensator and filament guide.
- Dual-flanged outer guide rollers with various widths, from 7 mm to 50 mm (single-flanged rollers optional)
- Built-in mounting holes permit fixed installation for continuous tension measurement
- Ball-bearing mounted, tape rollers
- 41mm Ø scale
- Each instrument is individually calibrated for highest accuracy
- Special finger support located on the rear side reduces the effort to move the outer roller assembly
- Everything in operator's view:
- the guide rollers
- the measured material
- the readings - Rugged aluminum housing
- Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
- Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report
| Model | Ranges | Measuring Head Width** mm | Roller Widths mm | ||
| DXB-50 | 10-50 cN | 55 | 7 | ||
| DXB-120 | 20-120 cN | 55 | 7,10,15,20,30 | ||
| DXB-200 | 20-200 cN | 55 | 7,10,15,20,30 | ||
| DXB-400 | 20-400 cN | 55 | 7,10,15,20,30 | ||
| DXB-1000 | 100-1000 cN | 55 | 7,10,15,20,30,36,41,50 | ||
| DXB-2000 | 200-2000 cN | 117 | 7,10,15,20,30,36,41,50 | ||
| DXB-5000 | 400-5000 cN | 117 | 7,10,15,20,30,36,41,50 | ||
| DXB-10K | 2.5-10 daN | 117 | 7,10,15,20,30,36,41 | ||
| DXB-20K-L | 5-20 daN | 167 | 7,10,15,20,30 | ||
| Other tension ranges, measuring head widths and material path calibrations available on request. Other units of measure available, such as g or kg. * SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width ** Outer distance between outside guide rollers Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied. | |||||
| Code | Roller material | Line Speed | |
|---|---|---|---|
| Code: Standard | Hardcoated aluminium (Exception: 7 mm rollers are made of nickel-plated steel) | 1000 |
|
| Code A: Air Damping | Code L: Special Lever | Code M: Memory Pointer |
|---|---|---|
This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. | Facilitates acquisition of the running material when measuring high tensions. | Retains the highest measured value (PEAK). |
 |  |  |
Tension meter with carrying case, operating instructions in English or German as requested
| Calibration: | According to SCHMIDT factory procedure |
| Accuracy: | ±1% full scale or ±1 graduation on scale |
| Scale diameter: | 41 mm |
| Temperature range: | 10-45ºC |
| Air humidity: | 85% RH, max. |
| Housing material: | Die-cast aluminum |
| Housing dimensions: | 188 x 85 x 45 mm (L x W x H) |
| Weight, net (gross): | approx. 520 g (1300 g) |
