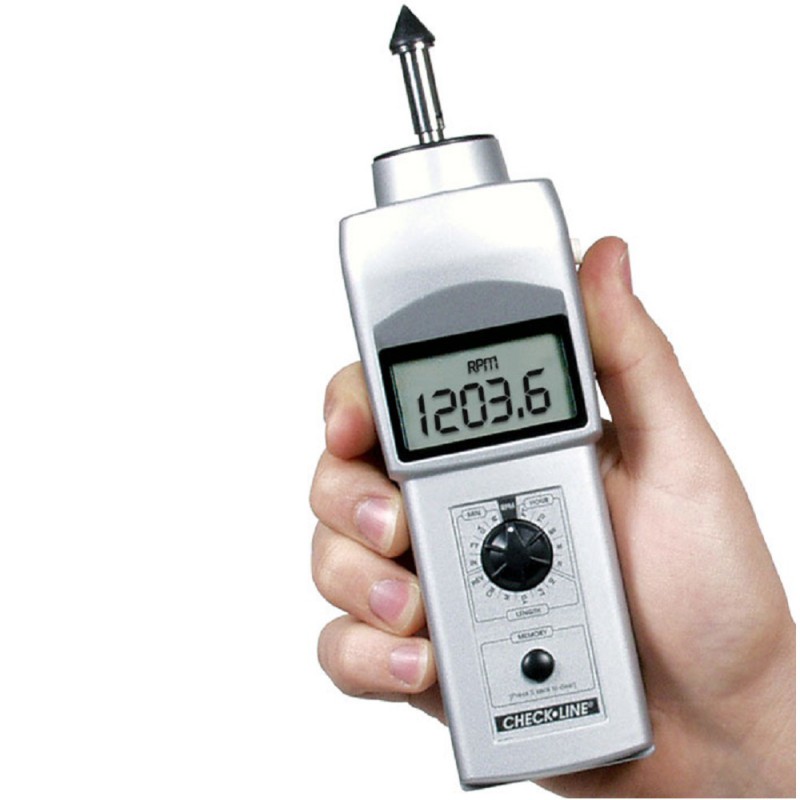

DT-105A - DT-107A Contact Tachometer


DT-105A (LCD MODEL)
DT-105A-12 (LCD MODEL with 12" Circumf. Wheel)
DT-107A (LED MODEL)
DT-107A-12 (LED MODEL with 12" Circumf. Wheel) 0.10 - 25,000 RPM

The DT-105A & DT107A Contact Tachometers accurately measure rotational and surface speed, as well as length. A built-in selector switch permits the user to display readings in a wide variety of engineering units. The DT-105A-12 and DT-107A-12 include a 12" circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed.



Features
  • Built-in memory for last, maximum, minimum and 10 separate readings
  • LED version for use in poorly lit or dark environments
  • Rugged cast aluminum housing
  • Includes Traceable calibration Certificate

LCD Display vs LED Display





Optional 12" Wheel for Large Diameter Cables, Tapes & Bands


Dimensions
Dimensions-DT-105A - DT-107A


Related Products

DT-205LR - DT-207LR Contact & Non-Contact Tachometer


  • High-precision laser measures from distances up to 14 feet

More details

DT-205LR - DT-207LR Contact & Non-Contact Tachometer

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes

Accessories

Category Tachometer Accessories


More details

Category  Tachometer Accessories 0

DTCA Tachometer Cone Tip


  • Tachometer Cone Tip

More details

DTCA Tachometer Cone Tip 126529

DTFA Tachometer Funnel Tip


  • Tachometer Funnel Tip

More details

DTFA Tachometer Funnel Tip 126530

DTSX 3-inch Shaft Extension


  • 3-inch Shaft Extension

More details

DTSX 3-inch Shaft Extension 126532

DT6 Rubber Measuring Wheel for Tachometers


  • Rubber Measuring Wheel with a circumference of 6 inches / 15,24 cm

More details

DT6 Rubber Measuring Wheel for Tachometers 126526

DT12 - 12 inch Circumference Wheel


  • 12 in Circumference Wheel

More details

DT12 - 12 inch Circumference Wheel 126527

LMA-3 12 in Circumference Knurled Aluminum Measuring Wheel


  • 12 in Circumference Knurled Aluminum Measuring Wheel

More details

LMA-3 12 in Circumference Knurled Aluminum Measuring Wheel 126528

FPM-12-CBL 12 inch Circumference Wheel


  • 12 in Circumference Wheel

More details

FPM-12-CBL 12 inch Circumference Wheel  126535

Complete Kit

All models are supplied as a complete kit including:

  • 6" circumference surface speed wheel,
  • two cone tip adapters,
  • funnel tip adapter,
  • shaft extension,
  • two AA batteries,
  • an operating instruction manual
    all supplied in a foam-fitted carrying case.


Specifications
Display Range0.10 to 25,000 rpm with floating decimal
Accuracy0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm
per MinuteRevolutions, Meters, Yards, Feet, Inches
per HourFeet, Yards, Miles, Meters, Revolutions
TotalRevolutions, Centimeters, Meters, Yards, Feet, Inches
per SecondRevolutions, Inches, Feet, Yards, Centimeters (optional, inquire)
Memory System13 readings are stored in memory and retained for 5 minutes
Over-Range IndicatorFlashing numerals
DetectionOptical coupler, 60 pulses/rev
Update Time1 second (typical)
BatteriesSize: 2 1.5 V AA
Life: Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A)
Low Voltage IndicatorFlashing "LO BAT" display (DT-105A)
"B" display (DT-107A)
Operating Temp32° to 113° F (0 to 45° C)
Weight0.9 pounds (400 grams)
Dimensions7.3" L x 2.4" W x 1.8" H
Warranty2 years
Accessories Included2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions

Buy Now
Products

Product
Price
Quantity
131429
DT-105A LCD Tachometer
€ 283,00
130521
DT-107A LED Tachometer
€ 283,00
131430
DT-105A-12 Tachometer LCD with 12" wheel
€ 340,00
126907
DT-107A-12 Tachometer LED with 12" wheel
€ 340,00
131431
DT-105A-12CBL Tachometer with 12" grooved cable wheel
€ 539,00
131432
DT-107A-12CBL Tachometer with 12" grooved cable wheel
€ 539,00

Accessories

Product
Price
Quantity
131288
DT-TRI-HD Mini Tripod
€ 39,00
130043
DTCA Cone Adapter
€ 17,00
130044
DTFA Funnel Adapter
€ 17,00
126862
DTSX -Shaft Extension
€ 15,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
