PLT-5000 Laser contact and non-contact tachometer

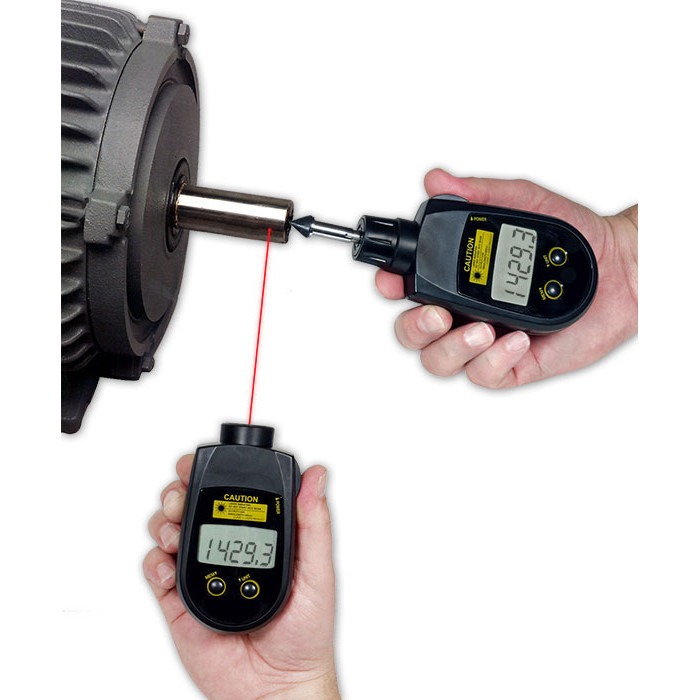

The PLT-5000 Pocket Laser Tachometer accurately measures RPM and Surface speed using contact or non-contact measurement techniques. This battery-powered unit is extremely compact for convenient portable use and is supplied in a rugged and attractive plastic housing that is ergonomically designed for optimum comfort.

When measuring RPM in the non-contact measuring mode, the PLT-5000 emits a precision laser beam that is aimed at a small piece of reflective tape, which is affixed to the rotating target.

The PLT-5000 is extremely easy to operate and quickly converts from non-contact operation to contact operation by screwing the contact adapter in place. In addition to RPM’s, a wide variety of engineering units for surface speed and length are user-selected via the front panel buttons. Units include; feet per minute, meters/min, yards per minute, inches per minute and more.

A built-in memory stores up to 10 measurements plus minimum, maximum, average and last.


Features
  • Sharp visible laser beam
  • 10 User selectable measuring units
  • Built-in memory for Max, Min, Average, Last and 10 seperate readings for recall in display
  • New energy saving design provides long battery life
  • Free manufacturer´s calibration certificate
  • Non-contact measurement of revolutions, using a laser beam and reflective tape
  • Simple one button operation
  • Contact measurement of revolutions, surface speed and length
  • Compact, ergonomically designed, rugged plastic housing
  • For exact measurements of revolutions per minute, total revolutions, length and velocity with different metric and english units
  • 1 year warranty

Accessories

10005S Measurement wheel for tachometer


  • Grooved measuring wheel
  • 6 inch circumference for measuring yarn- or wire speed

More details

10005S Measurement wheel for tachometer 125832

10009S Reflective tape


  • Self-adhesive reflective tapes
  • 4 x 35 pcs.

More details

10009S Reflective tape 125834

Complete Kit
Delivery includes:
Tachometer with adapter LC in carrying case with 3 batteries, 1 rubber tip (nr. 10006S), 1 rubber funnel (nr. 10007S), 1 rubber measuring wheel with 6 inch circumference (nr. 10002S), 35 self-adhesive reflective tapes, manufacturer´s calibration certificate and instrunction manual.

Standard Attachments



(1) 10006S, Rubber tip for contact measurements of rpm
(2) 10007S, Rubber funnel
(3) 10002S, Rubber wheel with 6 inch circumference for measuring velocity
(4) Adapter LC, (No.10013S) for contact measurements for series PH
(5) Reflective tape, 1 sheet of self-adhesive tapes (35 pcs.)


Specifications
Measuring ranges:Revolutions (non contact):
6 - 99999 min-1
Revolutions (contact):
6 - 25000 min-1 (limited for safety reasons)
Total RPM:
1 - 99999
Surface Speed:
1 - 3810 m/min;
36 - 99999 inches/min;
1.0 - 4166.4 yards/min;
3 feet/min
Length:
36 - 99999 in/min
3.0 - 12500 ft/min;
1.0 - 4167.0 yrds/min
1 - 3810 m/min
Accuracy:Revolution 6.0-599.9 rpm± 1rpm, 600-99,999 rpm:± 0.006% & ± 0.5 digit
0.4% and ± 1 digit for surface speed/length
Measuring units:Revolutions: min-1 (rpm); total rotations (counter): rev
Speed: m/min; feet/min; yards/min; inch/min
Length: m; feet; yard
Memory system:14 readings (incl. Last + Average + MAX + MIN) are stored and retained for 5 min
Measuring system:Laser beam, 1 impuls/rev (with adapter LC)
Laser, class 2:Power of laser: output < 1 mW, wavelength 670 nm, max. measuring distance 2 m
Display:5 digit LCD 0.47" (12 mm) high
Display update:1 s
Over range indicator:Flashing "OVR" display
Auto power off:After 5 min of non-use
Power supply:Batteries, 3 x 1.5 V Type AA (batterylife: approx. 35 h continuous use)
Low battery indicator:Flashing "LO BAT" in display
Temperature range:5 - 45°C
Air humidity:85% RH, max.
Housing material:ABS Resin
Dimensions:115.5 mm x 64 mm x 31.5 mm (L x W x H)
Weight, net (gross):160 g including batteries
Warranty:1 year

Buy Now
Product

Product
Price
Quantity
126018
PLT-5000 Tachometer
€ 230,00

Accessories

Product
Price
Quantity
125849
Grooved Measuring Wheel 6 Inch
€ 31,00
126135
10009S - Reflective Tape 4 Sheets 35 1/2
€ 15,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
