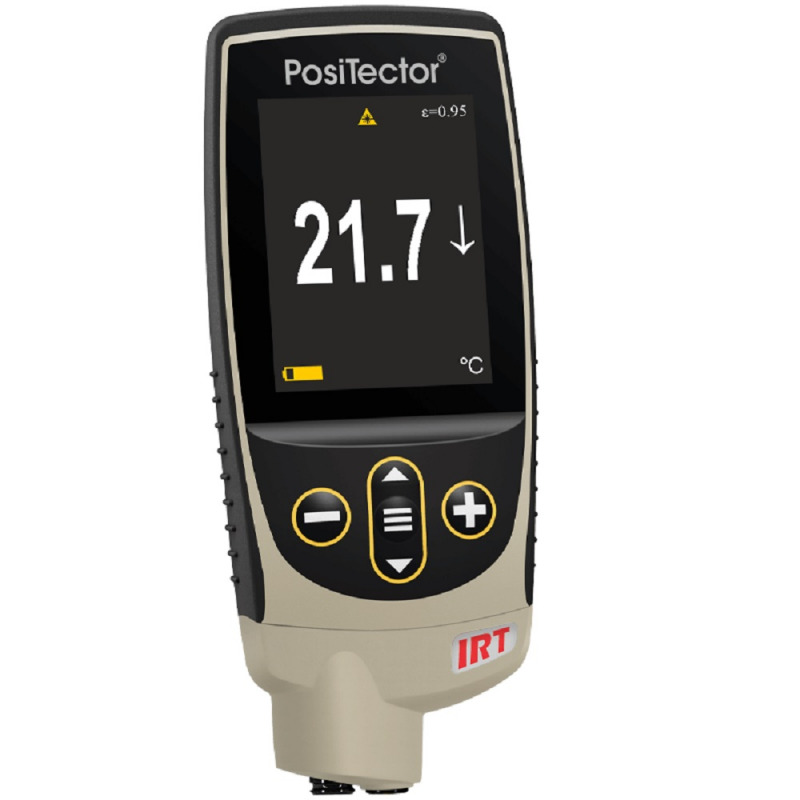

POSITECTOR IRT Infrared Thermometer with Laser Pointer
The PosiTector IRT non-contact Infrared Thermometer is a hand-held electronic instrument that measures surface temperature from a distance, quickly and accurately. It consists of a body (Standard or Advanced) and probe.
It also can be used for areas where conventional sensors will not work such as applications which are too hot for direct contact sensors or when contact with a sensor would damage the surfacei, also it can be used for hard to reach areas and moving parts.
Infrared thermometer for non-contact temperature measurements on surfaces.
Features of the PosiTector 6000-1 Standard Body include:
- Button-activated laser pointer for accurate targeting
- Selectable emissivity values—choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- Statistics Scan mode—continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Certificate of Calibration showing traceability to NIST included (Long Form)
- 5.7:1 distance to spot ratio—ideal for measuring large areas
- Smart Trend indicators identify rising, falling or stable readings
With the PosiTector 6000-1 Standard Body 1,000 readings can be stored, viewed or downloaded.
The PosiTector 6000-3 Advanced Body, is equipped with ALL features of the PosiTector 6000-1 Standard body, PLUS
- Storage of 250,000 readings from multiple probes in up to 1,000 batches
- Trend Charts graph readings in real-time
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Store thickness, profile, environmental salt contamination, hardness, and wall thickness measurements in individual batches
- PosiTector IRT with storage of readings
- Temperature Range: -70° to 380°C
- With laser point sighting
- 5.7:1 Distance to Spot Ratio (D:S)
- Warranty: 2 years
PosiTector IRT comes complete with
- IR temperature probe
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA batteries
- Nylon carrying case with shoulder strap
- Protective lens shield
- Long Form Certificate of Calibration traceable to NIST
- USB cable
- Manual
| Temperature Range | -70° to 380° C |
| Accuracy | ± 1°C + 10%* (* At 23°C) |
| Resolution | 0.1°C |
| Laser Pointer | Class 2 < 1 mW |
| Distance to Spot Ratio (D:S) | 5.7:1 |
| Emissivity | Adjustable |
| Response Time | <500 µs (95% response) |
| Spectral Response | 2 - 14 µm |
| Size | 137 x 61 x 31 mm |
| Weight | 140 g |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
