DISTO D810 Laser distance meter with touch screen - Leica Disto D810
The Leica Disto D810 touch is the newest innovation of the Leica laser distance meters. It is the first laser distance meter with a modern touch screen that makes an intuitive and quick operation possible. The Disto D810 features multiple indirect measuring functions. The especially designed tilt sensor ensures extremely precise results.
A revolutionary feature of the Disto D810 touch laser distance meter is the integrated camera: measurements can be carried out with pictures. By taking a picture at right angles to the object, the desired dimension can be marked with two arrows in the picture. Then the Disto D810 determines the width, height, area or diameter of the object. Measuring values appear on the display.
The camera function on the Leica Disto D810 touch can be used to take pictures and screen shots to document measurements. With the USB-interface, downloading the pictures and screen shots to a computer is easy and quick. Information about measured points will not be lost anymore!
For the full use of the Disto D810 functionalities, the smart free app "Leica Disto Sketch" is offered in Google Play Store and Apple App Store.
- Integrated camera makes measurements with pictures possible
- Innovative touch screen
- Pointfinder with 4x zoom
- Precise 360° tilt sensor
- Smart Horizontal Mode
- Height tracking
- Bluetooth interface
- Free App "Leica Disto Sketch" available in Google Play Store and Apple App Store
- Li-Ion battery
- ISO certificate
- Multifunctional end piece with automatic recognition
- Tripod thread
The Leica Disto D810 touch features multiple functions:
- Distance measurement
- Minimum / maximum measurement
- Area / volume measurement
- Trapezium function
- Pythagoras function for 2 and 3 points
- Inclination tracking
- Smart Horizontal mode
- Sloped object measurement
- Height tracking
- Height profile measurements
- Stake-out function
- Pictures / screenshots
- Gallery with USB-download
- Measure with the picture
- Compass
- Calculator
| Accuracy | ± 1 mm |
| Measuring Range | 0.05 - 200 m |
| Measuring Units | m, ft, in |
| Tilt sensor | 360° |
| Distance in m Ø of the laser dot in mm | 10, 50, 100 m 6, 30, 60 mm |
| Colour display with Pointfinder | 4x zoom |
| Photograph file format | .jpg |
| Memory | 30 displays |
| Data interface | USB and Bluetooth |
| Power supply | Li-Ion battery, rechargeable |
| Measurements per set of batteries | Up to 4000 (reduced in Bluetooth mode) |
| Dimensions | 164 x 61 x 31 mm |
| Protection class | IP 54 |
| Weight | 238 g (including batteries) |
| Device | Leica DISTO™ D810-touch | Wireless Connectivity | Data transfer |
|---|---|---|---|
| iPhone | |||
| iPhone 5 | Bluetooth 4.0 | with App or keypad note | |
| iPhone 4S | Bluetooth 4.0 | with App or keypad note | |
| iPhone 4 | Bluetooth 2.1 | with App or keypad note | |
| iPad | |||
| iPad mini | Bluetooth 4.0 | with App or keypad note | |
| iPad 2 | Bluetooth 2.1 | with App or keypad note | |
| iPad 3 | Bluetooth 4.0 | with App or keypad note | |
| iPad with Retina display (iPad 4) |
Bluetooth 4.0 | with App or keypad note | |
| iPod | |||
| iPod shuffle | with App or keypad note | ||
| iPod touch (5th generation) | Bluetooth 4.0 | with App or keypad note | |
| iPod touch (4th generation) | Bluetooth 2.1 | with App or keypad note | |
| iPod classic | with App or keypad note | ||
| Android | |||
| smartphones & tablets with Android 4.3 or higher | Bluetooth 4.0 | with App | |
| Windows | |||
| tablets with Windows 8 or higher | Bluetooth 4.0 | with keypad note | |

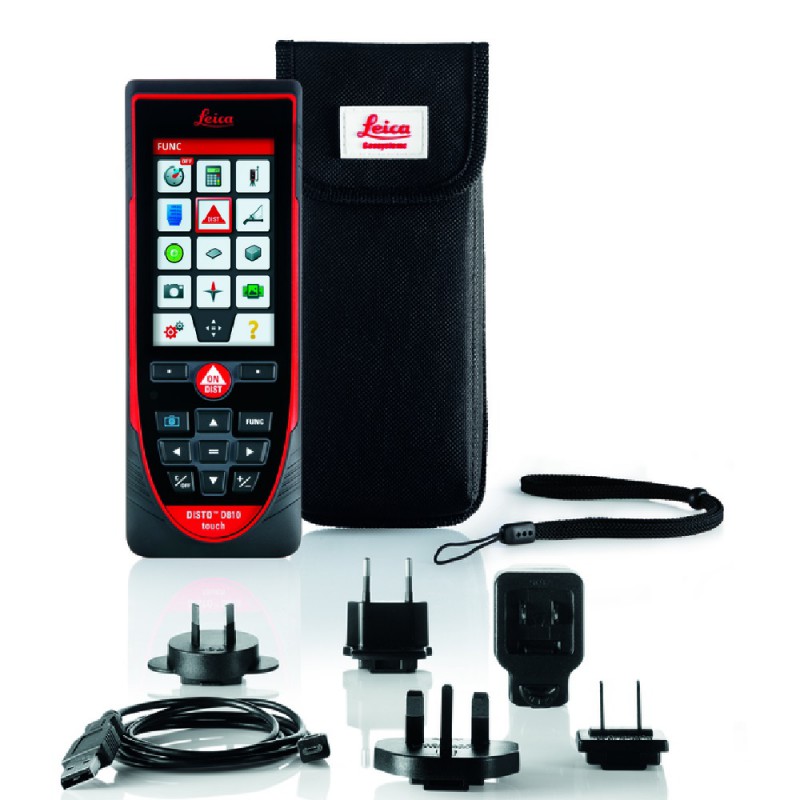

The Leica Disto D810 touch will be delivered as a complete kit, including:
- Leica Disto D810 touch laser distance meter
- Holster
- Hand loop
- USB charger incl. 4 plugs
Leica FTA360 The adapter for easy and precise targeting
- Designed to fit on a Leica TRI70 and TRI100 tripod
- Suitable for models Disto D810, Disto D8, Disto D510 and Disto D5
More details
Leica TRI70 TRI 70 - Small and handy tripod for every day use
- Working height from 40 to 115 cm
- Central column can be positioned conveniently by rotating the handle (45 cm range)
- Supplied in a bag with shoulder straps
More details
Leica TRI100 Large Tripod
- Aluminium tripod with easy fine adjustment
- Bubble level
- Working height from 0.70m to 1.72m
More details
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
