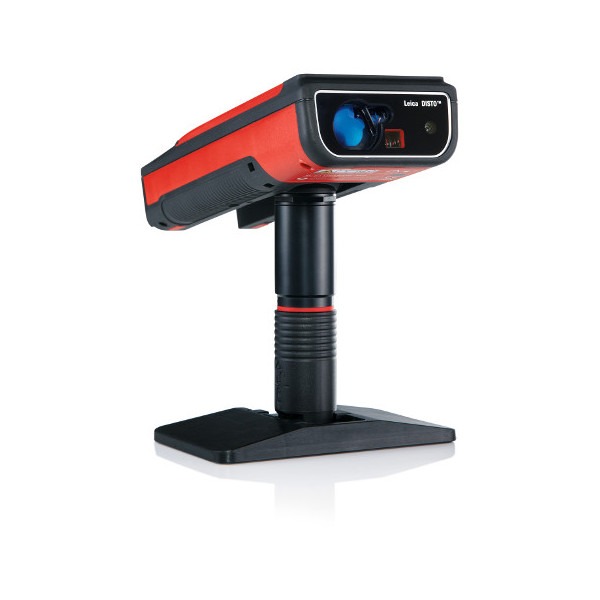

LEICA DISTO S910 - Laser distance meter with SmartBase
The Leica DISTO S910 is the latest model of the laser distance meters by Leica that enables you to measure in three dimensions from the very same location. Like the DISTO D810 touch, the DISTO S910 comes with a modern touch screen, integrated camera and Bluetooth SMART. However, this model replaces the multifuctional end-piece for a new feature: the SmartBase.
SmartBase
Smart Base is a biaxial pivot integrated with the circuit board, and the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software, SmartBase enables the S910 to measure the distances and angles between multiple points.
SmartBase facilitates three new remote measurement functions:
- Point-to-Point (P2P) measurement: By shooting two points (begin- and end-point), the S910 is able to determine distances, widths, diagonals, heights and gaps.
- Smart Angle measurement: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Area measurement: Shoot three points to measure any angle (including outside angles).
- Integrated camera makes measurements with pictures possible
- Innovative touch screen
- Pointfinder with 4x zoom
- 360° tilt sensor
- Touch screen
- Smart Horizontal Mode
- Height tracking
- Point-to-Point measurement
- Smart angle measurement
- Smart area measurement
- DXF data capture
- Free App
- Bluetooth and WLAN interface
- Li-ion batteries
- SmartBase
- ISO certificate
The Leica Disto S910 features multiple functions:
- Distance measurement
- Minimum / maximum measurement
- Area / volume measurement
- Triangle / room angle function
- Painter function
- Trapezium function
- Pythagoras functions
- 360° Tilt measurement
- Smart Horizontal mode
- Sloped object measurement
- Height tracking
- Height profile measurements
- Stake-out function
- Substraction / addition
- Pointfinder with 4x zoom
- Camera Function
- Measure with the picture
- Timer
- Personalised favourites
- Touch screen
- Compass
- Point-to-Point measurement
- Smart angle measurement
- Smart area measurement
- DXF data capture
- WLAN data transmission
- Bluetooth SMART
| Accuracy | ± 1.0 mm |
| Measuring Range | 0.05 - 300 m |
| Measuring Units | m, ft, in |
| X-Range Power Technology | Yes |
| Distance in m Ø of the laser dot in mm | 10, 50, 100 m 6, 30, 60 mm |
| Tilt sensor measuring range Accuracy to laser | 360° -0.1° / +0.2° ±0.1° |
| Units in the tilt sensor | 0.0° / 0.00% mm/m, in/ft |
| SmartBase measuring range Horizontal Verti | 360° -40° to 80° |
| Distance in m<br/>Typical tolerance of P2P function | 2, 5, 10 m 2, 5, 10 m |
| Leveling range | ± 5° |
| Leveling accuracy | ± 0.05° |
| Point finder with 4x zoom | Yes |
| Overview camera | Yes |
| Picture file format | .jpg |
| Memory | 50 displays |
| Memory for pictures | 80 photographs |
| CAD date format | .dxf |
| Memory for CAD files | 20 files, each with 30 points |
| Time delay release (timer) | Yes |
| Display illumination | Yes |
| Free software for Windows | Yes |
| Free App | iOS / Android |
| Data interface | Bluetooth SMART, WLAN |
| Measurements per set of batteries | Up to 4,000 |
| Tripod Thread | SmartBase |
| Batteries | Li-ion rechargeable |
| Charging time | 4h |
| Protection class | IP 54 |
| Dimensions | 164 x 61 x 32 mm |
| Wieght with batteries | 290 g |
The Leica Disto S910 touch will be delivered as a complete kit, including:
- Leica Disto S910 touch laser distance meter
- SmartBase Extension
- Holster
- Hand loop
- USB charger incl. 4 plugs
