The G1110 Puncture Fixture is designed for assessing the puncture resistance of plastic films and other materials up to 5 kN, in accordance with ASTM D5748 standards.
The fixture consists of a frame with eye-end mounting and four toggle clamps, a sample compression ring and a plunger, with eye-end mounting.
The fixture's ample height accommodates materials with significant elongation. The four toggle clamps clamp the compression ring with concentric ridges and effectively secures the material. Additionally, the included a plunger with a ball probe stretches and punctures the sample.
Please note that eye-end adapters are required at both ends to attach it to force gauges or force sensors.
The G1110 is compatible with F755 and F1505 motorized force testers.

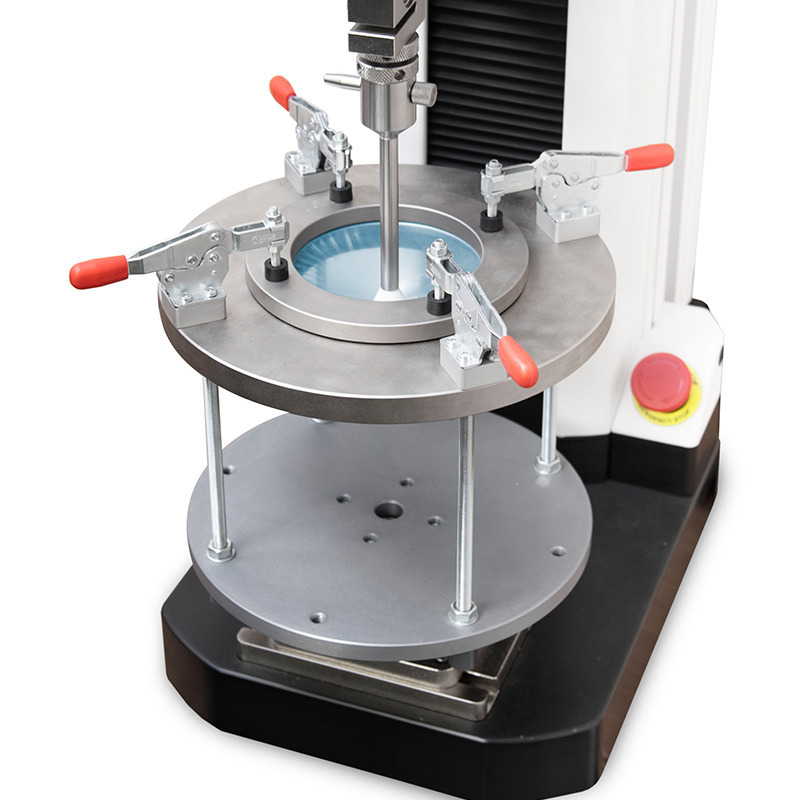

The G1110 puncture fixture is shipped as shown at left, and includes the following accessories:
All sizes are noted in inch with metric sizes in [mm] behind.
| Capacity | 5 kN |
| Weight | Fixture: 8.6 kg Probe: 0.2 kg |
