G1123 Self-Aligning Compression Plate
Price € 1.018,00
View all prices >>

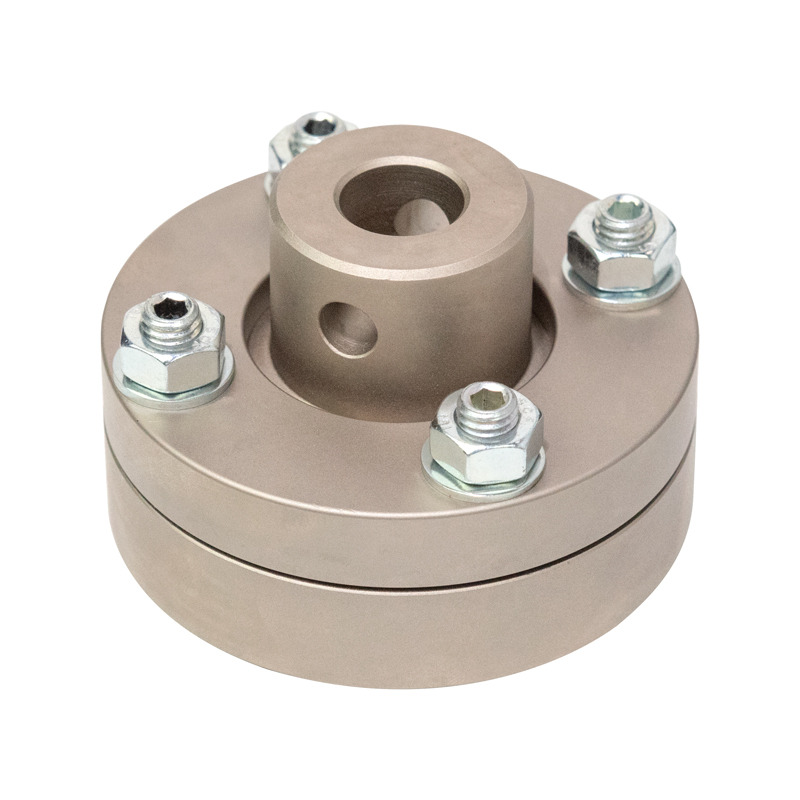

G1123, G1123 is shown in a typical application with low-deflection compression spring. Adjust the four screws and nuts to ensure full engagement with the top of the sample.
G1123, Self - leveling compression plate G1123.
G1123, Self - leveling compression plate G1123.
Click on an image for a larger image

G1123 Self-Aligning Compression Plate


Made in the USAThis G1123 self-leveling compression plate adjusts to the angle of the sample with 4 screws and nuts, ensures parallelism and complete sample engagement.

It Can be used for materials with high spring rates and especially good for low-deflection springs.

It has a integrated eye end mount,  an Eye End Adapter is required to adapt to our load cells, force gauges, and test stands.

See also our Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands.


Features
  • Self-leveling compression for ensuring parallelism and complete sample engagement.
  • Especially for low-deflection springs and materials with high spring rates.
  • Adjustable Angle of ±1.5°: Loosen the nuts, position the plate to deired angle and tighten.
  • Integrated eye end mounting.

Specifications
Capacity:9 kN / 900 Kgf
Weight:1,27 kg
Material:Steel 58 HRC, nickel - plated

Dimensions
IN [MM]
Dimensions-IN [MM]


Downloads
G1123 Solid Models
Data sheet for all Grips

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G1009 Compression Plates


  • Available in two sizes, 51 mm and 76,8 mm,
  • Available with and without vented channels
  • G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts

More details

G1009 Compression Plates

G1087 Compression Plates, High Capacity


  • Concentric grooves aid in sample positioning
  • Select from two sizes
  • Integrated eye end mounting

More details

G1087 Compression Plates, High Capacity

Buy Now
Request Information / Quotation

Product

Product
Price
Quantity
138248
G1123 - Self-aligning Compression Plate
€ 1.018,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
