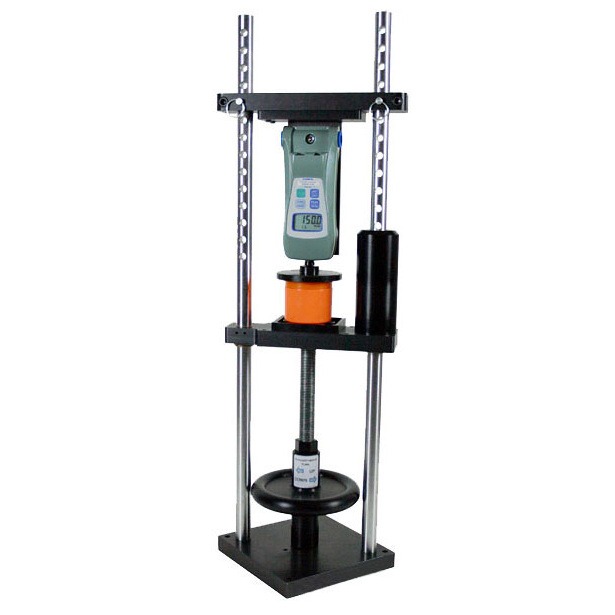

FGS-1000H Manual Turn-wheel Force Test Stand


The FGS-1000H manual force test stand is designed for convenient testing in both TENSION and COMPRESSION applications. The FGS-1000H is easy to set-up and use.

With its ability to mount the FGV-1000HX , (5000N / 500KG capacity) digital force gauge, and all FGE/FGV –X series force gauges, this system is a great fit for most force testing applications.

A smooth operating turn-wheel provides a precise 0.1" travel per revolution. The FGS-1000H heavy duty construction provides repeatable and reliable testing for many years. The FGS-1000H features adjustable height ranges, customizable lengths (for different sample sizes) and an option for a digital length/height meter.

With counter sunk (force gauge) mounting holes, a self aligning, pre-tapped sliding base plate for securely attaching test parts, the FGS-1000H is a welcome alternative for utilizing existing and new force gauges, grips, attachments and accessories.


Related Products

FGV-HXY High Capacity Digital Force Gauge


  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Accuracy ±0.2%
  • User-selected units of Pounds, Kilograms or Newtons

More details

FGV-HXY High Capacity Digital Force Gauge

FGE Hand-held Digital Force Gauge


  • Includes Traceable Calibration Certificate
  • Accuracy ± 0.2%
  • User-selected units of Pounds, Kilograms or Newtons

More details

FGE Hand-held Digital Force Gauge

Dimensions
Dimensions-FGS-1000H


Features
  • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
  • Sturdy all steel construction allows exceptional durability and extended life of the product
  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing
  • Adjustable clearance setting enables testing on a wide range of samples
  • Modular, compact design
  • Compatibility with many vendors’ force gauges facilitates flexibility when replacing older test stands

Specifications
Capacity500 kg / 5000 N
Stroke15.2 cm / ( 2.5 mm) wheel turn approx
Vertical Clearance33 cm
Weight25.4 kg
Warranty1 year

Complete Kit

Included Items:

  • 5mm Allen wrench
  • 3/16 Allen wrench
  • 1/4 Allen wrench
  • 4x Philips head screw M4x15
  • 4x Philips head screw M6x14
  • Threaded Stud
  • 1 Year Warranty
  • User Manual


Buy Now
Product

Product
Price
Quantity
132296
FGS-1000H Manual Hand Wheel Test Stand
€ 3.663,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
