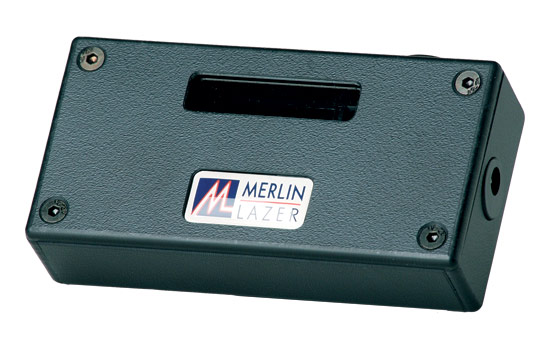

Merlin TGI Merlin Toughened Glass Indicator


Merlin TGI detects single or multipane toughened glass. The TGi can easily indicate whether glass is toughened or not and can detect toughened glass in both panes from one side.

When the instrument is placed against the pane and the red button at the top of the gauge is pressed, 2 lines indicate analysis of single pane glass and 4 lines indicate double pane glass.

Example 1: Single pane glass

- Line A is the surface on which the Merlin TGi is placed.
- Line B is the back wall of the pane.

Example 2: Double pane glass

- Line A is the surface on which the Merlin TGi is placed.
- Line B is the back wall of the first pane on the inside.
- Line C is the surface on the inside of the second pane.
- Line D is the surface on the outside of the second pane.


Complete Kit

The Merlin TGi is delivered including:
- Merlin TGi
- Protective pouch
- Instruction manual
- Charger for internal battery


Measurement modes
1. Single Skin - Normal

  Both lines A and B remain blue

2. Single Skin - Toughened

  Line A remains blue, line B changes colour

3. Double Glazed - Both Panes Normal

  Lines A, B, C and D remain blue

4. Double Glazed - First Paine Normal, Second Pane Toughened

  Lines A, B and C remain blue, line D changes colour

5. Double Glazed - First Pane Toughened, Second Pane Normal

  Line A remains blue, line B changes colour, lines C and D change colour together (not independently of each other)

6. Double Glazed - Both Panes Toughened

  Line A remains blue, line B changes colour; lines C and D change colour separately (ie independently of each other).
