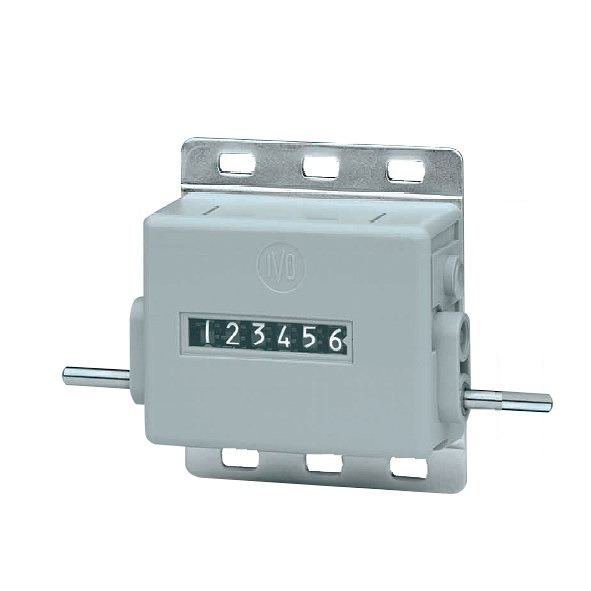

U300 IVO Mechanical Revolution Counter With Key Reset
Counter available in various models described below.- Counting in direction of defined rotation (adding). Substracting in reverse direction.
- 1 revolution = 1 digit
- Max. 3000 rev/min
- With Key Reset
| Display: | 6-digit, 999 999 |
| Digit size: | Approx. 4.5 mm high, white on black background |
| Reset: | Turn removable socket key on either side to reset |
| Drive shaft: | Projecting on both sides, Ø 4 mm |
| Housing material: | Gray plastic |
| Base plate: | Steel, galvanized |
| Ambient temperature: | 0...+60 °C |
| Weight: | Approx. 130 g |
| Counting mode: | In sense of rotation to be defined, adding. Subtracting in reversed direction. |
| Max. Speed: | Max. 3000 rev./min. |
