Tension Inspect Data Transfer & Analysis Program

The Tension Inspect Data Transfer & Analysis Program is no longer available and has been replaced by SW-TI3.
Click here to see the SW-TI3.

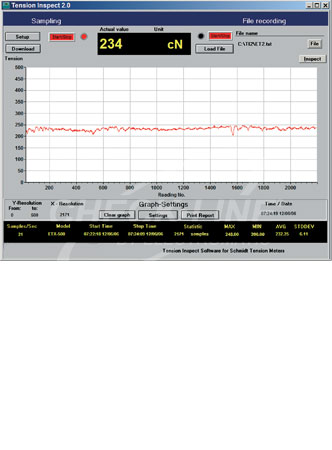

TensionView is an easy-to-use program designed to display, record, graph and print data transferred from the gauge. Data can be viewed in real time, as it’s being recorded or at a later time after batch downloading from the gauge's built in datalogger.
This software can be used for the following instruments:
- Tension Meters: Series DT, ETX, KXE, MST, TS and FS
- Tension indicator for Online Sensors: Series SCD-1and SC-PM

Separate display "windows" permit the user to customize the screen using a variety of display formats, including numeric trend graph and analog formats. Statistical values are automatically calculated and displayed, including Maximum, Minimum, Average and Standard Deviation.

Easy to use program to display and store tension values on an PC.
The measuring values including date and time (msec accurate) are saved as CSV fi le and can be transferred to MS Excel® afterwards.

An maximum of 1000 measurements/sec can be transferred to an connected PC (depends on measuring device):
- Max: 1000 measurements/sec.
- Min: every 10 sec one measurement.

Features

TensionInspect is an easy-to-use program designed to display, record, graph and print data transferred from the gauge.
Can be used for: Tension Meters: Series DT, ETX, KXE, MST, TS and FS
Can be used for: Tension indicator for Online Sensors: Series SCD-1and SC-PM
Recall of stored measurements
Displays the measurements as digital value
Displays the measurements as X-Y diagram
Statistical evaluation of diagram-shown measurements
Long time recording using an operator set time span
Setup -Menu
Generate a report

System Requirements

Required interface: USB, RS 232, RS 422
System-Requirements: Win XP and higher (32 bit and 64 bit)

Delivery includes: CD with manual
