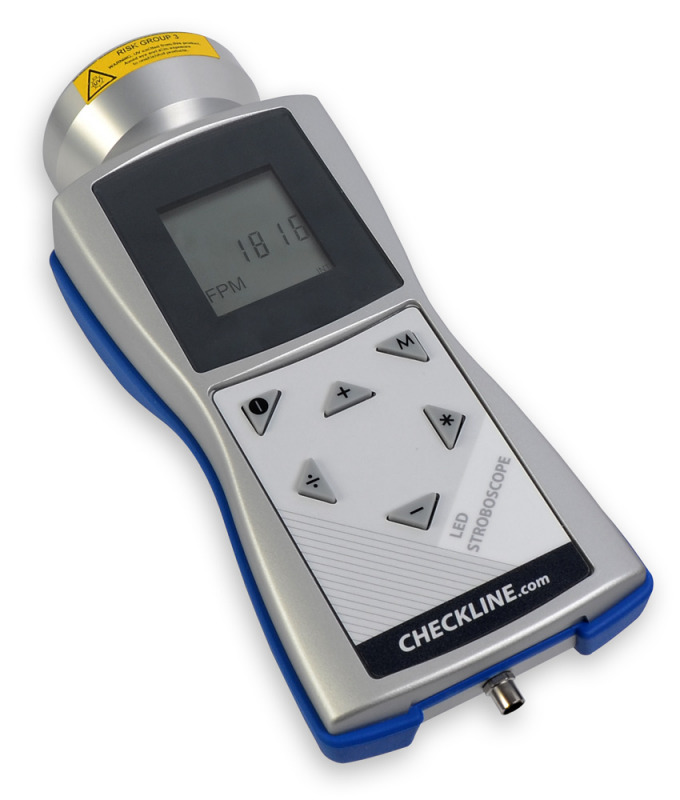

DS-2000LED-UV UV LED Stroboscope with external trigger input/output
The DS-2000LED-UV is a battery-powered hand-held UV LED stroboscope and has been especially developed for inspecting UV ink on labels, security tags, watermarks and many others.
The DS-2000LED-UV has a superior light output, which is ensured by 7 state-of-the-art UV LEDs mounted in a precision-machined aluminum housing. Furthermore these long lasting, very bright LEDs won’t require replacement and thus make this UV stroboscope a perfect choice for harsh printing environments.
Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed.
A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip.
- 3 AA-Batteries provide six hours of continuous use operation
- Intuitive controls allow user to quickly adjust flash rate and shift phase
- User-selected units of Hz or FPM (Flashes Per Minute)
- 2-Year warranty
- IP 65 rated housing provides protection from water jets
- An External Trigger Input signal can be used to externally control the flash rate
- The Trigger Output provides a frequency output signal which can be used by data collection devices to record flash rate
The DS-2000LED-UV Strobe is supplied in a foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries in total), Traceable Calibration Certificate and Operating Instruction Manual.
Li-Ion Rechargeable AA Batteries via the USB to USB-C
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
QB-LED Portable Battery powered LED Stroboscope
- 40 High Power LEDs produce 5000 Lux Peak Brightness
- "Slow Motion" mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" (External Trigger Mode only)
More details
| UV Wavelength | 380-390 Nanometers |
| Frequency Range | 30 - 300,000 FPM (0.5 - 5000 Hz) |
| Flash Duration | Adjustable (1 - 8522 μs) |
| Accuracy | ± 0.02% ± 500ns |
| Resolution | ± 0.1 FPM (30 - 999) ± 1 FPM 1000+ |
| UV Light Spectrum | 380…390 nm |
| Protection Class | IP65 (Protection from Dust and Water Jets) |
| Display | LCD, multiple lines |
| Certification | CE (as per EU norms) |
| Power Supply | 3x AA size batteries or 3x NiMH rechargeable batteries |
| Housing Material | Aluminum / ABS Heavy duty design |
| Dimensions | 191 x 82 x 60 mm |
| Weight Approx | 400g (including batteries) |
| Temperature Range | 0° - 45° C |
| Battery Life | NiMH: approx 11h at 6.000 FPM Disposable: approx 6h at 6.000 FPM |
| Default Settings | FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0 |
| Trigger Input | 3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free |
| Trigger Output | Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated |
| Warranty: | 2 years |
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
