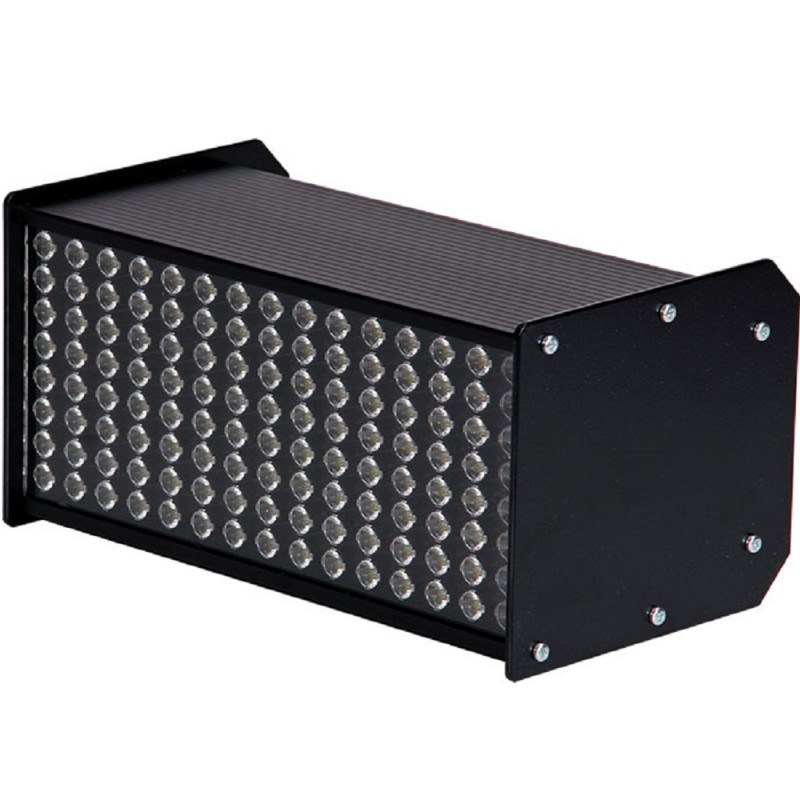

LS-9-LED LED Fixed-Mount Linear Stroboscope


Made in GermanyThe new LS-9-LED is a high-performance stationary LED-stroboscope with powerful light output and uniform light distribution over a large area for use on web-widths up to 500mm (20 inches) and wider.

High light output
Due to the configuration with 120 high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogeneous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.

Superb image sharpness
With an adjustable flash duration from 1-1000 seconds, you will easily find the best combination between light intensity and sharp images for every application.

Flexible adjustments to all applications
Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT STROBE control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs by using the switch on the reverse side of the device.

Additional control options
The LS-9-LED control model range includes two devices for varying the control of RT STROBE 5000LED:
RT STROBE eco control - a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.
RT STROBE control - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.


Features
  • LEDs provide lifetime use and never require replacement
  • Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")
  • Uses 120 of the newest generation LEDs in a 8 x 15 matrix. Adjustable brightness and image sharpness
  • For web widths > 500 mm (20"), Two (2) or more strobes can be connected in parallel
  • Powered by 24V DC (1.5A peak). An optional universal AC-DC Power supply is offered as an option
  • Connections include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations

Wide-Body Housing Configuration

We offer a special configuration of the LS-9-LED Linear Stroboscope packaged in 440 mm width housing (17.3 inches) designed to provide a more aesthetically-pleasing solution when the strobe is fixed-mounted on a machine frame that is 18 inches or wider (460 mm+).

The 120 LEDs are spread in three (3) separate "clusters" each containing 40 LEDs, arranged in a 5x8 array. The position of each "cluster" is optimized to provide the optimal light uniformity over the entire illumination area with the same effective brightness as the standard version of the LS-9-LED (7500 Lux, peak). This model is popular with OEM Machine Manufacturers of Slitter/Rewinders and similar machines used in the label and printing industries.


Light Output (LUX) vs Distance


Overview of LED Strobe Models
Model LEDs Array Size Brightness (peak) Housing Width
LS-5-LED 80 10 x 8 6000 Lux 150 mm
(6 inch)
LS-9-LED 120 15 x 8 7500 Lux 230 mm
(9 inch)
LS-9-LED-WB 120 5 x 8 (3x) 7500 Lux 440 mm
(17 inch)
LS-18-LED 200 25 x 8 9000 Lux 440 mm
(17 inch)

Related Products

LS-SCU Remote Control Unit



More details

LS-SCU Remote Control Unit

LS-FCM Flash Control Module



More details

LS-FCM Flash Control Module

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

LS-REGSENSOR Registration Mark Sensor


  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor

SAS-DT300 Articulating Stroboscope Swing Arm


  • 41" when fully extended
  • Heavy duty construction with internal springs

More details

SAS-DT300 Articulating Stroboscope Swing Arm

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes

Leica TRI100 Large Tripod


  • Aluminium tripod with easy fine adjustment
  • ¼” fixing screw on removable head plate
  • Working height from 0.70m to 1.72m

More details

Leica TRI100 Large Tripod

Accessories

Category Stroboscope Accessories


More details

Category  Stroboscope Accessories 0

Specifications
Frequency Range0 -120000 RPM (flashs per minute)
Power Supply3...30 V / max. 5 mA potential free optocoupler DIN 41524 5-pin standard plug Uout=Uin, max. 200 mA switchable trigger input for parallel connection
Trigger outputFor parallel connection
Light intensity/sharpnessAdjustable with turning knob
Illumination intensity single flashca. 1 Mega-Lux/30cm / 12"
Illumination Intensity5.000 Lux/30 cm / 12" with 2°
Illumination area30x50 cm/11,8x19,7"
Flash colorca. 5000...8.300 K
MaterialAluminum
Dimensions230x130x112 mm / 9,1x5,1x4,4
Weight1.400 g
Ambient temperature0°...40°C (32°...114°F)
Storage temperature-25°C...70°C (-10°...125°F)
Humiditymax. 95% not condensing
CertificationsCertificate of CE conformity
