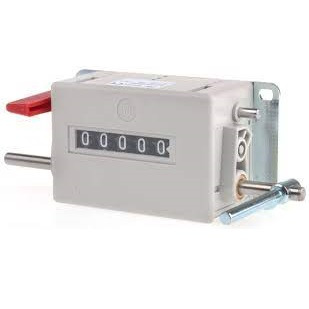

H410 IVO Mechanical Stroke Counter
Counter available in various models described below. - Counting in direction of stroke to be defined,
adding 1 stroke = 1 digit. - Stroke lever adjustable by choice on drive shaft. Stroke lever returns automatically to initial position.
- Stroke extent min. 38°, max 60°
- Max. 500 strokes/min
| Display: | 5-digit, 99 999 |
| Digit size: | Approx. 7 mm high, white on black background |
| Reset: | By pushing the socket lever, mounted on right or left side, user choice |
| Drive shaft: | Projecting on both sides, dia. 7 mm |
| Housing material: | Gray plastic |
| Base plate: | Galvanized steel, 2.5 mm thick |
| Ambient temperature: | 0 ... +60 °C |
| Weight: | Approx. 380 gr |
| Counting mode: | In direction of stroke to be defined, adding 1 stroke = 1 digit |
| Stroke extent: | Min. 38°, max 60° |
| Stroke lever: | Adjustable by choice on drive shaft. Stroke lver returns automatically to initial position. |
| Max. speed: | Max. 500 strokes/min |
