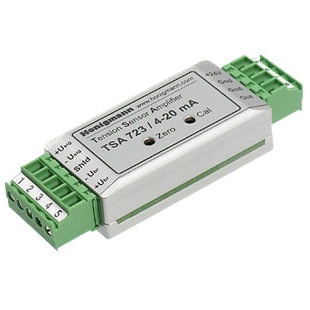

TSA723 Miniature Measuring Amplifier for Strain Gauge Sensors


Made in GermanyThe miniature measuring amplifier TSA723 satisfies with a compact and rugged design. The housing fits optimally into the arrangement of terminal blocks in a control cabinet.

For mounting with double-faced adhesive tape or for the use in laboratories the measuring amplifier is available without rail-mounting adapter.

Connection is effected by plugs with screw terminals. This offers a very efficient wiring possibility.


Features
  • Voltage output 0 to ±10V; optional current output 0-20 mA or 4-20 mA
  • ZERO and CAL adjustment by multi-turn potentiometer
  • Input power supply of 24V DC, reverse-polarity protected
  • Compact and robust aluminum housing

Downloads

Buy Now
Products

Product
137797
TSA723-10-P-R Precision measuring amplifier for strain gauge sensors

136133
TSA723-20-P-RPrecision measuring amplifier for strain gauge sensors

137603
TSA723-420-P-O Precision measuring amplifier for strain gauge sensors

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
