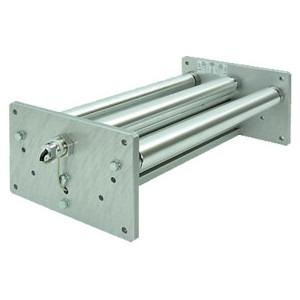

WTM-3R 3-rollers web tension measuring station


Made in GermanyWeb Tension Module 3 Roller Design with measurement ranges up to 200 KG (2000 N / 440 lbs).


Features
  • Customer specified roll material and material surface
  • Labyrinth seals / V-sealing rings
  • Customer specified roll dimensions
  • Easy-running self-aligning bearings arranged with fixed and floating bearing
  • Pre-assembled, ready to be installed as measuring module
  • Available in rated load ranges: 0 to 2N ... 0 to 2000N

Tension Ranges
ModelRanges Range g/Kg (lbs)
WTM-3R-200 0-2 N 0-200 g (0.00-0.44 lbs)
WTM-3R-400 0-4 N 0-400 g (0.00-0.88 lbs)
WTM-3R-1K 0-10 N 0-1 Kg (0.00-2.20 lbs)
WTM-3R-2K 0-20 N 0-2 Kg (0.00-4.40 lbs)
WTM-3R-4K 0-40 N 0-4 Kg (0.00-8.80lbs)
WTM-3R-10K 0-100 N 0-10 Kg (0.00-22.0 lbs)
WTM-3R-20K 0-200 N 0-20 Kg (0.00-44.0 lbs)
WTM-3R-40K 0-400 N 0-40 Kg (0.00-88.0 lbs)
WTM-3R-100K 0-1000 N 0-100 Kg (0.00-220.0 lbs)
WTM-3R-200K 0-2000 N 0-200 Kg (0.00-440.0 lbs)
