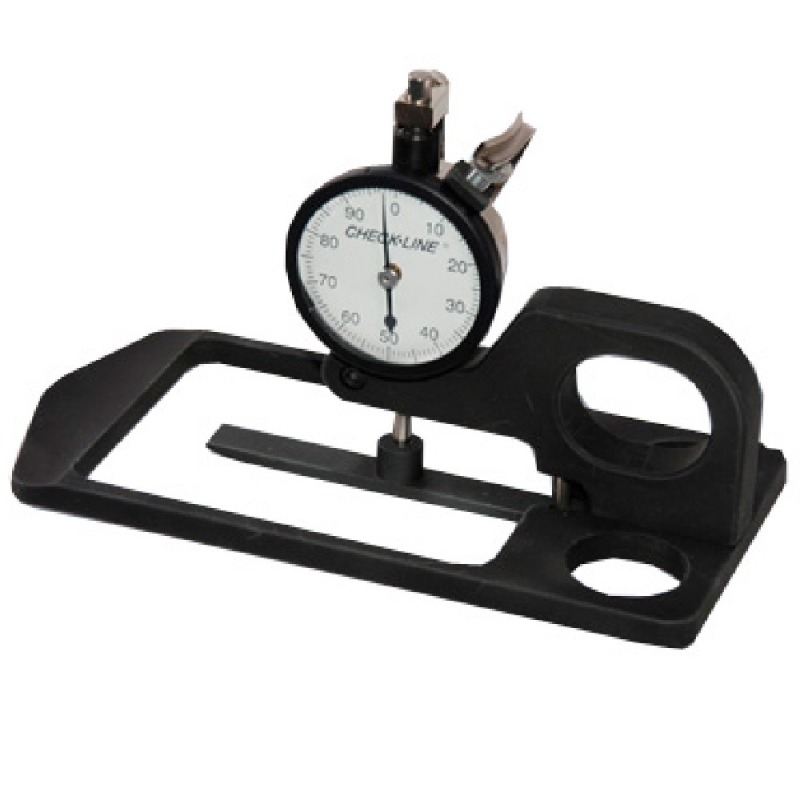

WT-100 Warp Tension Meter
An easy-to-operate measuring foot and small "scooping" frame provide a quick and easy way to check warp tensions.
Its 0-100 units scale and foot pressure have been carefully chosen to provide comparative warp tension measurements for most applications.
Special foot pressures are available where the standard foot pressure is too high or low.
- Dependable, lightweight, small, rugged and easy-to-use.
- A large, 2-3/4" wide measuring foot, provides even, perpendicular pressure for highly repeatable readings.
- A thumb-actuated mechanism lifts the pressure foot for easy insertion into the warp and allows a scooping action by the bottom frame to select the number of ends to be measured.
| Calibration | 0-100 empirical units |
| Resolution | 1 unit |
| Dial Face Diameter | 1-1/2" (38mm) |
| Foot Pressure | 240g ± 10 at 1 revolution of pointer |
| Dimensions | Frame: 5-7/8" x 3" (150 x 176mm) Height 3-5/8" (92mm) |
| Frame Material | Aluminum Alloy |
| Weight: | 240 gr |
