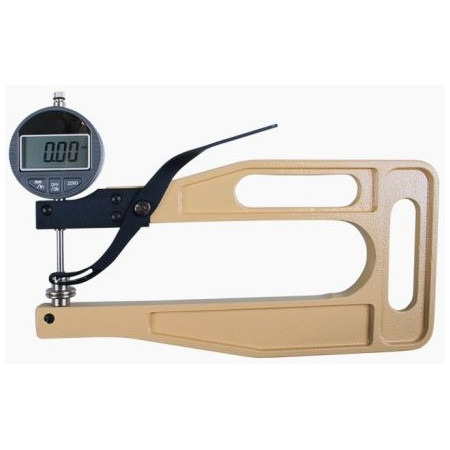

DMD-820 Digital Thickness Gauge | DMD-820


Made in GermanyThe DMD-820 digital thickness gauge measures the thickness of different materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the DMD-820 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 10 mm.


Features
  • RS 232 output
  • Self closing mechanism
  • Zero setting by button push
  • Measuring by spring force
  • Selectable measurement units
  • Inklusive calibration certificate

Available models
ModelRangeResolutionDepth of Jaw
DMD-30 - 10 mm0.01 mm50 mm
DMD-3-10 - 25 mm0.01 mm50 mm
DMD-8200 - 10 mm0.01 mm200 mm
DMD-820-10 - 25 mm0.01 mm200 mm
DMD-8300 - 10 mm0.01 mm300 mm
DMD-830-10 - 25 mm0.01 mm300 mm
DMD-8500 - 10 mm0.01 mm500 mm
DMD-850-10 - 25 mm0.01 mm500 mm

Available feelers
When ordering the DMD-820, please indicate your desired feeler, for example "DMD-820-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications
Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:200 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E
Display:LCD 4 digit, 8 mm high
Measuring system:Sylvac
Weight, net (gross):700 g (750 g)

Buy Now
Products

Product
Price
Quantity
134435
DMD-820-B Thickness gauge DMD 820 with feeler B (diameter feeler 10 mm)
€ 381,00
135639
DMD-820-C Thickness gauge DMD 820 with feeler C (diameter feeler 25 mm)
€ 350,00
137292
DMD-820-D Thickness gauge DMD 820 with feeler D (diameter feeler 5 mm)
€ 381,00
134445
DMD-820-E Thickness gauge DMD 820 with feeler E (diameter feeler 16 mm)
€ 381,00
137863
DMD-820-F Thickness gauge DMD 820 with feeler F (diameter feeler 3.5 mm)
€ 381,00
138004
DMD-820-I Thickness gauge DMD 820 with feeler I (diameter feeler 50 mm)
€ 403,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
