TT-DA, CA1075i - Adapter 1" Male Sq to 3/4" Female Sq insert for Test Stand

Click on an image for a larger image

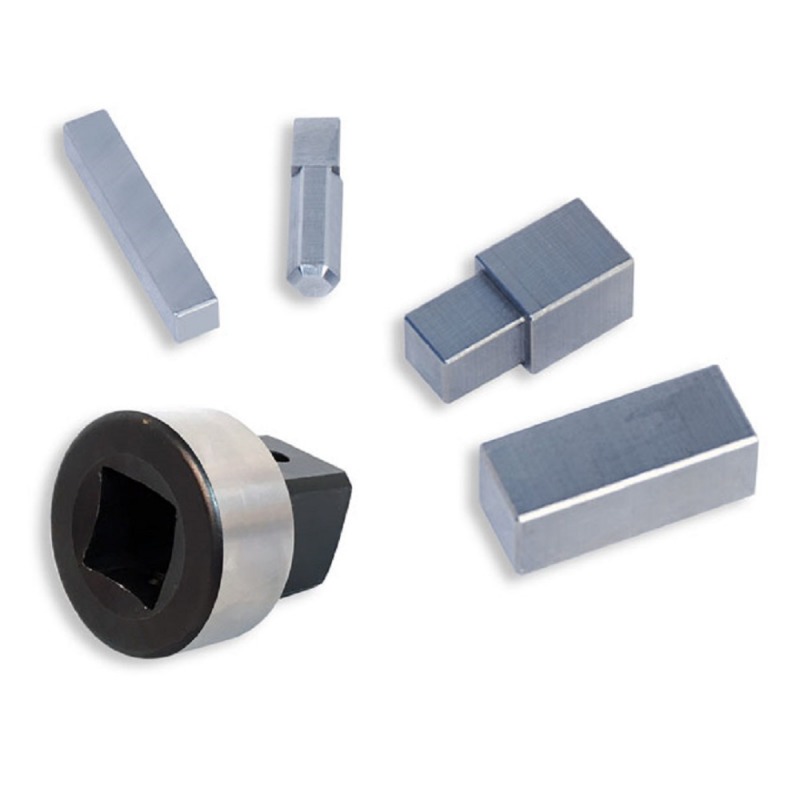

TT-DA Insert-, and Drive Adapters

Insert-, and drive adapters for torque measurement equipment.

These high tolerance adapters can be used for use with smaller or larger tools.

Specially for calibration purposes
Adapters do not have ball detents
Custom drives available, inquire

Features

Insert-, and drive adapters
For calibration purposes
No ball detents
Custom drives available

TT-CA TT-CA Radius Arms / Torque Arms

TT-CA Radius Arms up to 2000 Nm
TT-CA-.1MA High Accuracy Calibration Arm 0.1 meter radius 11 Nm Max
TT-CA-.25MA High Accuracy Calibration Arm 0.25 meter radius 340 Nm Max
TT-CA-.5MA High Accuracy Calibration Arm 0.5 meter radius 750 Nm Max
TT-CA-1MA High Accuracy Calibration Arm 1.0 meter radius 1500 Nm Max
The radius arms are available in 2 versions:
High Accuracy Arms are for use with +/-0.25% tolerance transducers / Standard Accuracy Arms are for use with +/-0.5% tolerance transducers
