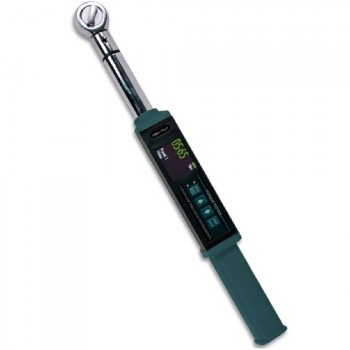

ETW-SP Premium Digital Torque Wrench
Top of the line!
This high range digital torque wrench includes outstanding features such as bi-directional operation, peak measurement mode, memory, USB output, software and cable. In addition, this top of the line measurement device is also equipped with a multi-language menu, SPC & PLC output, programmable presets and a calibration reminder.
- Large Color Organic LED (OLED) Display.
- Robust Bi-Directional Ratchet Head
- Ergonomic Soft Grip for comfort
- Bi-Directional Accuracy better than 1%
- Battery Life of over 180 hours
- Traceable Calibration Certificate Included
- Includes USB Output & Data Transfer / Analysis Software
- 1 Year Warranty
- Over-Torque Warning On Display
- Automatic Power Down
- Automatic Zero Point Setting
- Storage Capacity of 2000+ Measured Values
| Feature Comparison Chart | EZ | PR | SP |
|---|---|---|---|
| Peak Measurement Mode | - | ||
| Memory (2000+ Measurements) | - | ||
| USB Output, Software & Cable | - | ||
| SPC & PLC Output | - | - | |
| 99 Programmable Presets | - | - | |
| Multiple languages | - | - | |
| Calibration Reminder; by date or # of measurements | - | - |
| Accuracy | CW - ±1% CCW - ±1% of indicated reading 10 - 100% of capacity (readings start at 2%) |
| Resolution | 0.01 N-m / 0.1 in-lb / 0.01 ft-lb |
| Sampling Frequency | 500 Hz (500 samples/sec) |
| Display Update Rate | 4 Hz (4 times/sec) |
| Operation Mode | Peak, Track, Preset |
| Unit selection | Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in |
| Length | 410 mm / 0,85 kg (Ranges 10 - 135) 625mm / 1,3 kg (Ranges 150 - 400) 1,2 m / 4 kg (Ranges 500 - 1000) 1,6 m / 6kg (Ranges 1500 - 2000) |
| Head Type | Robust Bi-Directional Ratchet |
| Battery | 4 x AA |
| Battery Life | 180+ hours |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Storage Capacity | 2000+ values |
| Communication Port | USB bi-directional communication |
| PLC Communications | Using ASCII or Binary transfer |
| Languages | English, Chinese, French, German, Italian, Japanese, Polish Portuguese, Russian, Spanish, others on request |
| Calibration | Electronic, by date or number of measurements |
| Programmable presets | 99, via PC or directly on Wrench |
| Warranty | 1 year |
| Model | Range | Std Drive | Optional Drive | ||
| ETW-SP-10 | 1 - 10 N-m | 1/4" | 3/8" | ||
| ETW-SP-20 | 2 - 20 N-m | 1/4" | 3/8" | ||
| ETW-SP-50 | 5 - 50 N-m | 3/8" | 1/4" | ||
| ETW-SP-100 | 10 - 100 N-m | 3/8" | 1/4" | ||
| ETW-SP-200 | 20 - 200 N-m | 1/2" | - | ||
| ETW-SP-340 | 34 - 340 N-m | 1/2" | - | ||
| ETW-SP-600 | 60 - 600 N-m | 3/4" | - | ||
| ETW-SP-800 | 80 - 800 N-m | 3/4" | - | ||
| ETW-SP-1000 | 100 - 1000N-m | 3/4" | - | ||
| ETW-SP-1500 | 150 - 1500 N-m | 1" | - | ||
| ETW-SP-2000 | 200 - 2000 N-m | 1" | - | ||
Li-Ion Rechargeable AA Batteries via the USB to USB-C
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
TWT-410 Torque Wrench Test Stand
- The flexible design of the TWT-410 is easy to use and is suitable for various torque wrench lengths and brands
- Compatible with TT-QC, TT-QCM and TTC torque tester
More details
