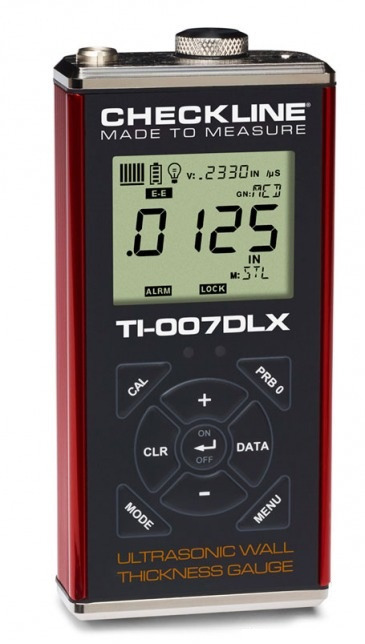

TI-007DLX for high-resolution measurements on thin-wall materials


Made in the USAThe TI-007DLX is a precision ultrasonic wall thickness gauge is especially developed for high-resolution measurement of thin-wall metal and plastics.

Its incorporated memory can store up to 10,000 data values in up to 40 batches with 250 values/batch. The data can be transferred to other devices via the USB port using the supplied cable. No special software is needed.  When the TI-007DLx is connected to a PC, it is automatically recognized as a drive. This permits easy drag-n-drop into a program of choice. The derived data is compatible with every program and software, given that the data is saved in a comma delimited file format (.csv) .

The TI-007DLX has a measuring range in steel from 0.15 to 25.40 mm. In order to measure thin materials, while automatically removing any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, a single element tip transducer needs to be used.

Use the option Graphite Delay Line Tip and chose the plastic mode (PLAS) for measuring plastic.

In the Differential (DIFF) mode, you can set a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness. An alarm (user-set Hi/Low Limits) triggers Hi/Lo LED's when the measured values surpass the tolerance and velocity mode.

For wall thickness measurements up to 915 mm, a single element contact transducer can be used.

The housing is made of sturdy extruded aluminum and is sealed for ultimate protection against harsh industrial and field environments.


Features
  • Data storage for 10,000 measured values, in 40 stacks of 250 measured values each
  • 3 exchangeable measurement modes: Pulse-Echo (P-E), Interface-Echo (I-E) and Plastics (PLAS)
  • Resolution of 0.001mm
  • 5 year warranty on the meter
  • NIST traceable calibration certificate included
  • Adjustable sound speed, 8 presets & 2 memory slots for user sound speeds
  • Setting to known sound velocity or calibration to known material thickness possible
  • Adjustable GAIN in 5 levels, for fine adjustment of difficult materials or applications
  • Scan mode with 100 measurements per second for fast checking of large surfaces
  • Large, easy-to-read LCD display with backlight
  • Measuring units selectable in or mm
  • Adjustable backlight ON / OFF / AUTO
  • Powered by: 120MHz FPGA Timing & 100 Volt Spike Pulser

Complete Kit

The TI-007DLX Ultrasonic Thickness Gauge comes in a complete set consisting of:

     TI-007DLX material thickness gauge

     T-402-5507 1/4 "15 MHz probe incl. Delay tip

     120ml coupling gel

     NIST traceable calibration certificate

     USB-C data transfer cable

     2 AA batteries

     operation manual



Everything delivered in a foam-lined plastic carrying case.



Delay tips for the TI-007DLX
P/N Description Standard / optional Image
X-231-0000 1/4" x 3/8"
For all metals
(short)
Standard
X-241-0000 1/4" x 1/2"
For all metals
(long)
Standard
X-633-0000 1/4" x 3/8"
For thin plastics
(short)
Optional

The graphite tip is used in special plastic mode to measure plastics.


Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 12.7 mm
Minimum Radius for Concave Surfaces 63.5 mm
Minimum Radius for Concave Surfaces Minimum Headroom 33.0 mm
Minimum Sample Diameter Minimum Sample Diameter 33.0 mm

Accessories

A-302-6002 Protection for TI series gauges



    More details

    A-302-6002 Protection for TI series gauges 127313

    Category Ultrasonic Thickness Gauge Accessories


    More details

    Category  Ultrasonic Thickness Gauge Accessories 0

    CF-AN Coupling Fluid


    • Used to create an ultrasonic coupling between the probe and material to be measured
    • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

    More details

    CF-AN Coupling Fluid 126455

    Specifications
    Maximum measuring range:
    (on steel):
    up to 915 mm
    (depending on material, test head and type of test head)
    Measuring range with standard probe:0.15 - 25.4 mm with standard probe with delay tip
    Resolution:Switchable 0.001 mm or 0.01 mm
    Gain:Automatic time-dependent amplification (TDG) with manual override
    Automatic time-dependent amplification (TDG) with 305 - 18542 m/sec
    Probe (standard):1/4 "diameter, 15 MHz probe with deceleration tip and cable (item T402-5507)
    Probe (optional): Diverse single element probes with delay tip or diverse single element probes with delay tip or contact probes (5 - 20 MHz) Contact probes (5 - 20 MHz)
    Cable:1.2m with Microdot / Lemo 00 connector
    Display:Multifunction LCD display with 7 segments and backlight
    Backlight display:Illumination selectable ON / OFF / AUTO and adjustable illumination intensity (Lo, Med, Hi)
    Display update rate:10 Hz (10 updates / second)
    Data storage:10,000 measured values, in 40 stacks of 40 measured values each
    Data output:USB (cable included)
    Operating temperatur:-30 - 75°C
    Battery type:2x AA 1.5V alkaline, 1.2V NiCad or 1.5 lithium AA cells (rechargeable batteries can be used)
    Battery duration:Typically 35 hours with alkaline batteries and 18 hours with NiCad.
    Weight:308 Gram
    Dimensions:64 x 131 x 32 mm
    Housing:Extruded aluminum body with nickel-plated aluminum end caps (sealed with gasket)
    Protection class of the housing:IP65
    Certification:NIST traceable and MIL-STD-45662A
    Keyboard:Sealed membrane keypad
    Pulse repetition frequency:200 Hz (200 pulses / second)
    Warranty:Gauge: 5 years
    Probe: 90 Tage
