MK-21 Vibration meter for easy diagnostics

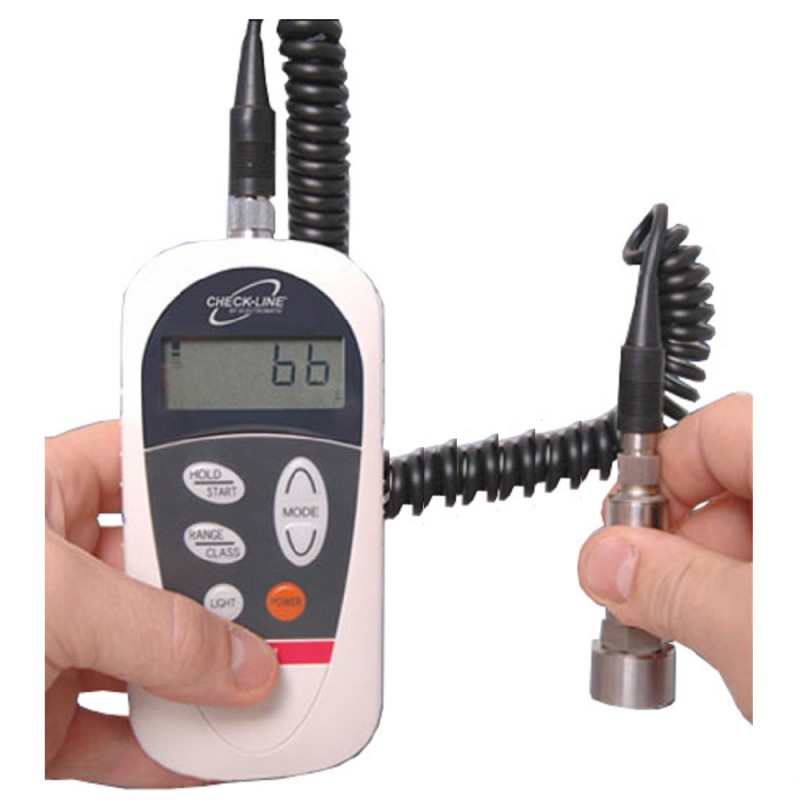

The Checkline MK-21 Vibrationmeter accurately monitors vibrations in all kinds of machinery as recommended by ISO 10816. This Vibrometer will be a great help to you as a monitoring system to indicate when maintenance or repair of your machinery is due.
In addition to standard approaches, the MK-21uniquely checks machinery condition, in the Diagnostic mode, without reference to a chart … as easy as reading a, bb, ccc and dddd on the display - where a = Quite Good (Zone A), bb = Good (Zone B), ccc = Poor (Zone C) and dddd = Bad (Zone D).
The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
- 5 selectable measuring modes: Diagnostic, Displacement, Velocity, Acceleration Peak and Acceleration, as required for a wide choice of vibration analysis techniques.
- Extremely compact, ergonomic and lightweight
- The simple menu setup makes this vibrometer very easy to use
- Powerful magnet-fitted sensor assures dependable mounting on vibrating steel surfaces
- Four (4) Target Machinery Classes, per ISO 10816, in Diagnostic mode: Classes I, II, III and IV, for machines from less that 15 KW to Large Prime Movers, such as turbo generators and gas turbines with outputs greater than 10 MW.
- Selectable backlit display for dark, hard-to-read locations
| Low Range | HI Range | ||
|---|---|---|---|
| Measuring Range | ACC | 0.0 ~ 20.0 m/s² | 0 ~ 200 m/s² |
| ACCP | 0.0 ~ 20.0 m/s² | 0 ~ 200 m/s² | |
| VEL | 0.0 ~ 20.0 mm/s | 0 ~ 200 mm/s | |
| DISP | 0 ~ 200 µm | 0 ~ 1990 µm | |
| Frequency Range | ACC | 1k ~ 20kHz | |
| ACCP | 1k ~ 20kHz | ||
| VEL | 10 ~ 1kHz | ||
| DISP | 10 ~ 1kHz | ||
The MK-21 is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.
| Sensor: | Piezoelectric vibration pickup |
| Probe Operating temperature: | 0 ~ 80° Celsius |
| Probe Dimensions: | Ø 24 x 14mm (Total heigth 115mm) |
| Measuring modes: | Acceleration (ACC): RMS value Acceleration (ACCP): PEAK value Velocity (VEL): RMS value Displacement (DISP): P-P value |
| Linearity: | < +/-2% F.S. of each range |
| Resolution: | 1/200 F.S. of each range |
| Display: | 4½ - digit LCD display |
| Display Size: | 18.4 x 49.8 mm |
| Power: | One AA alkaline battery |
| Automatic power off: | - No use for more than 10 minutes - Low battery |
| Battery life: | > 8 hours continuous use (light off) |
| Operating temperature: | 0° ~ 50° Celsius ( < 90% RH, Non condensing) |
| Storage temperature: | -10° ~ 60° Celsius ( < 90% RH, Non condensing) |
| Dimensions: | 69 W x 30 D x 154 H mm |
| Weigth: | Approx. 140g (battery included) |
| Warranty: | Gauge: 1 year Probe: 90 days |
