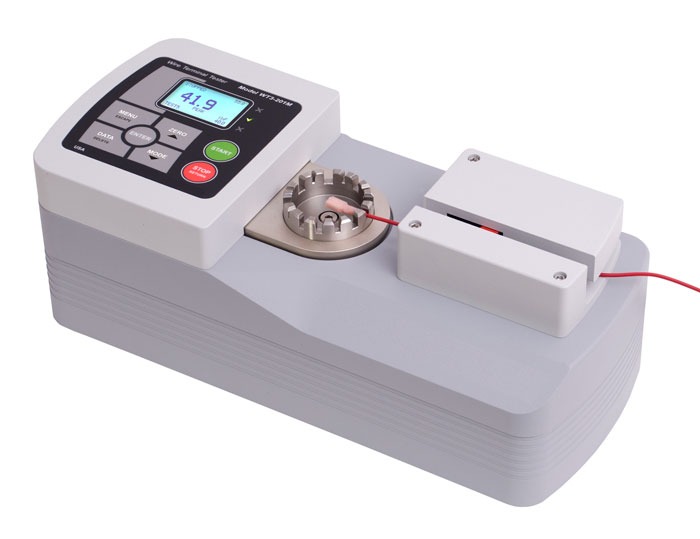

WT3-201ME Motorized Wire Pull Tester


Made in the USAThe WT3-201ME is not just the motorized version of the WT3-201E Wire Crimp Pull Tester.
It is equipped with automatic test programs that comply with UL, ISO, ASTM, SAE, MIL, and other standards for destructive testing. With optional features like non-destructive testing, including pulling to a load (WF011) or maintaining a load (WF012) for a specified period of time, as per the requirements of UL 486A/B. The profile function is an option that can increase the effectivity of the WT3-201ME with the possibility to save and recall test parameters such as speed, pass/fail limits, unit of measurement, etc.
A total of up to 500 test setup profiles can be stored.

With applied forces up to 1 kN, a wire terminal that can accommodate wires from 0,5 to 6,3 mm it can accommodate most wires and insulation types. Optional ring terminal fixtures and machinable blank fixtures can increase the versatility of this device.

The WT3-201ME features an auto-start function that starts the test when the wire sample has been loaded.
When the sample breaks, the tester can auto-reverse, output the peak force, store the peak force, and zero the display automatically, thereby increasing testing throughput.
The programmable pass/fail limits with red and green indicators and audio alerts helps to identify non-conforming samples.

On-board data storage and statistical calculations is provided for up to 2,000 readings, with as optional feature available date and time stamp(WF013) for each saved data point.
Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

The automated programs and features make this device efficient and reliable for repeated testing on various applications

MESURLite data acquisition software is included with this device, MESURLite software tabulates single point or continuous data, with one-click export to Excel for further data processing.
The optional carrying case, WT3004-1, makes storing and transportation simple and safe.

During a trail period of 160 days after purchase all optional functions will work even if they are not acquired. After the trail period only the standard functions plus the ones purchased will work.


Features
  • Measures real-time and peak force values
  • Auto-start upon sample insertion
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • 2.000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
  • Stores up to 500 setup profiles
  • Selectable test speed, w/high speed approach and reverse
  • Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
  • Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
  • Password protection prevents unauthorized changes
  • Pass / fail indicators, audio alerts, and outputs
  • Auto-reverse at sample break or load
  • Date / time stamp for all saved data (optional function)

Optional functions
Part numberFeatureDiscription
WF010ProfilesSave and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc. Maximum of 500 profiles may be stored.
WF011Pull to loadThe tester will stop when the specified load has been reached.
WF012Load holdingThe tester will stop and maintain a specified load for a specified period of time.
WF013Date and time stampA date and time stamp is applied to each saved data point.
WFCOMPComplete options packageIncludes all optional functions listed above.
These optional functions can be purchased at time of order or later through the function configuration platform.
This platform enables a user to add functions that where not originally ordered.
All functions are initially enabled for 160 days demo period after purchase.

Display

WT3-201 Display


Key Features
Standard terminal fixture
Adjustable terminal fixture accommodates wire diameters up to 6.3 mm
Starts automatically
The tester automatically starts when the sample is loaded, and returns to home when the sample breaks.
Pinch guard
As the test begins, serrated cams engage the sample. A pinch guard (red tab shown above) automatically rotates into position, for added safety.
Multiple profiles
Save and recall multiple profiles, for quick and accurate switchover to different test methods.

Dimensions
Dimensions-WT3-201M


Dimensions of the WT3-201M wire crimp pull tester,

All dimensions are noted in Inches with metric sizes in [mm] behind.


Complete Kit

Scope of delivery:

  • WT3-201M with standard terminal fixture
  • Power cord,
  • Quick-start guide,
  • USB cable,
  • Resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, User's guide),
  • Certificate of calibration without data(with data is optional).



Video Demo WT3-201M


Accessories

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Specifications
Capacity x Resolution100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN | 3200 x 2 ozF | 200 x 0.1 lbF
Accuracy±0.2% of full scale
Minimum Sample length165 mm, excluding termination
Wire gauge rangeAWG30 - AWG 3 (0.3 - 6.3 mm)
Slot widths standard fixture 0,3/ 0,7/ 1,0/ 1,5/ 2,0/ 2,3/ 2,8/ 3,0/ 3,5/ 3,8/ 4,3/ 4,5/ 5,1/ 5,3/ 5,8/ 6,3 mm
Max. elongationTest speed: 10 - 300 mm/min
Approach/reverse speed: 325 - 2,400 mm/min
Speed setting accuracy±0.2%
Speed variation with load±0%, Stepper motor driven
Sampling rate7,000 Hz
Safe overload150% of full scale (display shows "OVER" at 110% and above)
Outputs USB/RS-232: Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Including Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0,25% of full scale at capacity
General purpose:Three open drain outputs, one input
Set points: Three open drain lines
PowerUniversal input 80-240 VAC, 50/60 Hz
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Operating Temperature4 to 38° C
Weight12 Kg (shipping weight 14 kg)
Warranty3 years
