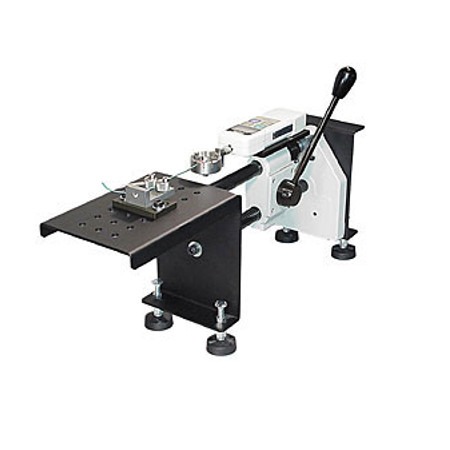

WTT-HD Horizontal Wire Terminal Tester
The WTT-HD wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests.The WTT-HD system comes standard with:
Test Stand: NLH-220
Force Gauge: DS2-220
Slotted Terminal Grip: WG-3
Cam Cable Grip: WG-300
Optional:
Optional pull test attachments wedge grip, cam grip, vise chuck, WG-1 or WG-2 wire grip to suit your application (attachments for other applications are available).
WG-1 is perfect for pull testing crimp on wire terminals. Set the opening size by turning the wingnut until jaws contact sample, then back off a little until the sample slides into the jaws from the side. Then you can simply slide the next sample into the jaws when you are ready to test.
WG-2 grips the actual wire or sample tested with serrated jaws. Ideal for a variety of shapes.
WG-3 multi wire terminal grip has 12 wire gauge apertures on the turret. Locate the appropriate size, lock in position and you’re ready to test.
The KC-100 spring- loaded wedge grip is ideal for tensile measurements of thick materials (up to 10mm thick). The serrated jaw is 15mm wide
- For checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests
- Accuracy: ±0.2% ±1 LSD
- Measuring Range: 0-100 Kg / 0-1000N / 0-220 lbs
- Resolution: 0.01 Kg / 0.1 N / 0.1 lbs
| Measuring Range | 0-100 Kg / 0-1000N / 0-220 lbs |
| Accuracy: | ±0.2% ±1 LSD |
| Resolution: | 0.01 Kg / 0.1 N / 0.1 lbs |
| Display: | 4 digit, 12 mm high |
| Overload capacity: | 200% Full scale, |
| Data Processing Speed: | 1,000 data/second (30 data/second rate selectable) |
| Display Update: | 10 times per second |
| Outputs: | RS-232, Mitutoyo Digimatic and ±1 VDC analog output |
| Temperature range: | 0 - 40° C (32° to 100° F) |
| Low battery indicator: | Display flashes when battery is low |
| Power supply: | Rechargeable NiMH battery pack or AC adapter (included) |
| Setpoints: | Programmable high/low setpoints with LCD indicators |
| Dimensions: | 66cm x 17cm x 27cm (L x W x H) |
| Warranty: | 2 years |
WG-3 Wire Terminal Grip
- Multi terminal grip
- With 12 wire gauge apertures
- For wires up to 8mm
- Up till 0-100 Kg / 0-220 lbs / 0-1000N
More details
WG-300 Wire Cam Grip
- Grips quickly and easily
- For wires up till 6mm
- Capacity: 0-100 Kg / 0-220 lbs / 0-1000N
More details
DS2 Digital Force Gauge
- Real time and peak mode (selectable)
- Overload capacity 200% F.S.
- RS-232C, Digimatic and analog outputs
- lb, kg, and Newton units are push-button selectable
More details
WG-1-WG-2 Wire Terminal Grips
- WG-1 Smooth Jaw (0-100 Kg / 0-220 lbs / 0-1000N capacity)
- WG-2 Serrated Jaw (0-100 Kg / 0-220 lbs / 0-1000N capacity)
- Spring loaded 20 mm jaws
- Open up to 5 mm
More details
KC Heavy-duty Wedge Grips
- Spring-loaded wedge grip
- Self-tightened
- Attachment/detachment of a test piece can be done by one-touch operation
More details
