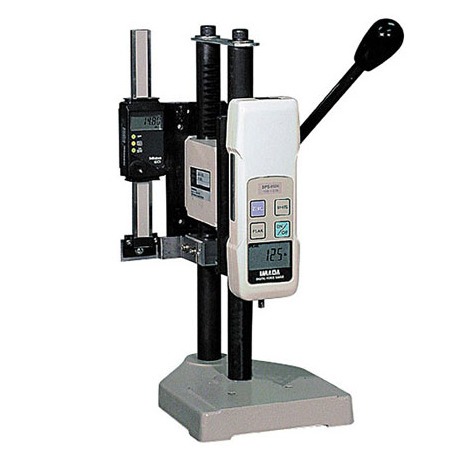

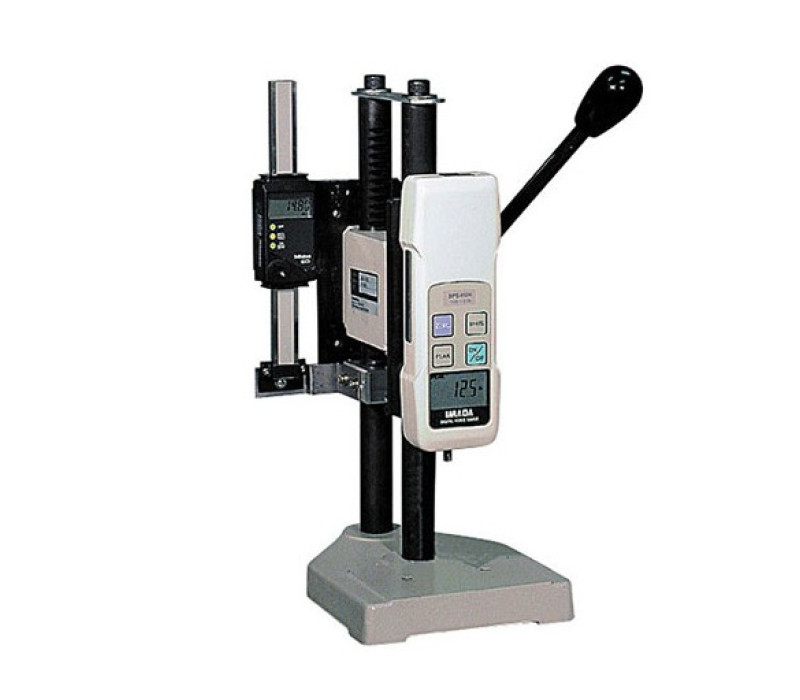

NLV-220: Vertical Lever Test Stand
The NLV-220 from Checkline is a vertical lever test stand that offers a robust and versatile solution for both compression and tension force testing. This model is renowned for its ease of use and its ability to quickly adapt to various tests, thanks to its innovative lever design.
Key Features:
- Capacity and Versatility: With a capacity of up to 220 pounds, the NLV-220 is ideal for a variety of industrial applications, ensuring precise and consistent measurements.
- Functional Design: Equipped with a return spring in compression models and settings for both traction and compression tests, this stand easily adapts to different sample types and testing requirements.
- Compatibility and Accessories: Compatible with all standard Checkline dynamometers and can optionally be equipped with a digital distance meter for precise measurements. The optional extender plate allows for increasing the available space to 14 inches for larger samples.
Key Benefits:
- Testing Versatility: Capable of performing both compression and tension tests, offering flexibility for different types of tests.
- Efficient Operation: The lever action enables quick and repeatable tests, ideal for dynamic production environments and testing laboratories.
- Ease of Use: Its user interface is designed to facilitate quick changes between samples, enhancing efficiency in high-performance environments.
Contact us for more information about the NLV-220 and how it can adapt to your operational needs.
Features
- Multiple Configurations: Available in versions for compression (NLV-220-C and NLV-220-C-S with distance meter) and tension (NLV-220-T and NLV-220-T-S with distance meter), extending its applicability.
- Durable Construction: Its aluminium housing is lightweight and robust, ensuring the long life of the equipment even under intensive use conditions.
- Additional Accessories: Optionally available with a digital distance meter, enhancing measurement accuracy and facilitating result documentation.
Dimensions
NLV-220 series
Sizes are mentioned in mm with inch sizes in parenthesis.
Related Products
DST Digital Force Gauge with 30,000 / sec sampling rate
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Backlit LCD reversible display with user-friendly menus
More details
HV-N Series: Manual Test Stands
- Extended Compatibility: Although designed to integrate with DS2 and ZT force gauges, these stands can be adapted to use with a variety of gauges thanks to the AP-002 adapter plate.
- Customisation: Options for digital distance meters and extended columns are available to meet specific testing specifications.
- Quality Assurance: Each model comes with a 2-year warranty, ensuring commitment to quality and customer service.
More details
Specifications
| Capacity | 220 Lbf (100 Kgf) |
| Stroke | 52mm |
| Maximum Clearance | 228mm (355 with optional extender plate) |
