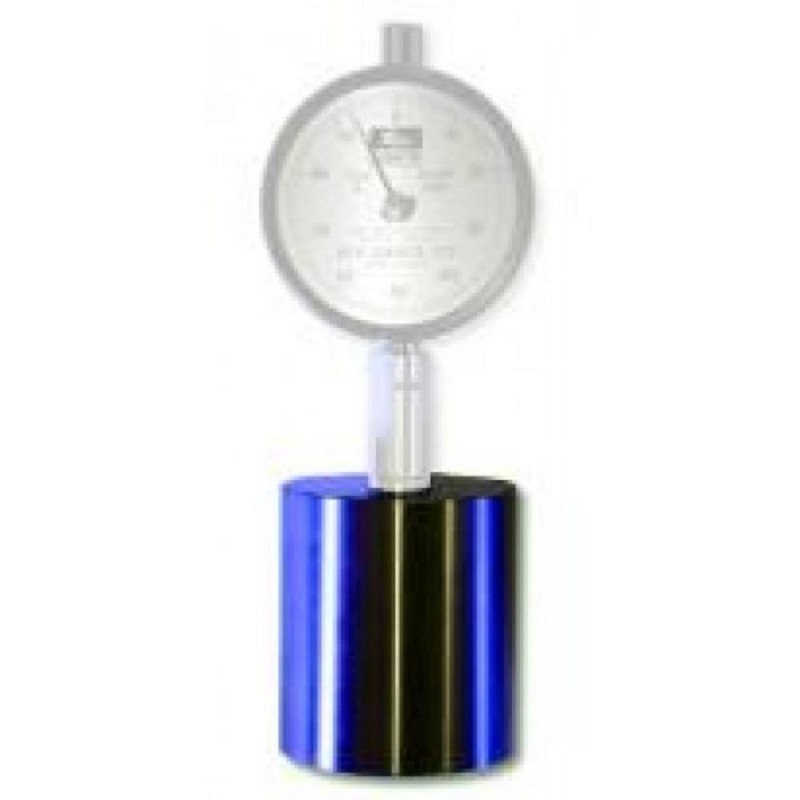

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO


Made in the USARX-CLW for A, B & O
RX-CLW-OO for OO & OOO

A common error when using a durometer is to imbed the foot of the gauge into the specimen by pressing down with excessive force. All instruments are made in accordance with ASTM D-2240. This standard states that for types A, B, and O the gauge should be pressed onto the specimen with a load of 1 kg. The Constant Load Weight for gauges with an 822g spring load (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg. With the load weight on the gauge, all the user has to do is set the gauge on the test specimen - no further pressure is necessary. Thus the Constant load weight eliminates the human error that would otherwise occur due to users pressing on excessive or inconsistent force. Constant Load Weights are precision CNC machined from stainless steel and are polished and calibrated by skilled craftsmen in the USA.

 As stated above, a common error when using a durometer is to imbed the foot of the gauge into the specimen by pressing down with excessive force. All instruments are made in accordance with ASTM D-2240. This standard states that for types OO and OOO the gauge should be pressed onto the specimen with a load of 400g. The Constant Load Weight for the type OO and OOO gauges screws onto the top of the gauge and raises the mass of the gauge to the suggested 400g.




Features
  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg

Related Products

RX-1600 Precision Durometer


  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240
  • Full 360 degree sweep

More details

RX-1600 Precision Durometer

RX-1700 Precision Durometer With Memory


  • Reads maximum and creep
  • Conforms to ASTM D-2240

More details

RX-1700 Precision Durometer With Memory

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-DD Digital Durometer

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Specifications
DimensionsRX-CLW: 2" x 2.160" (5cm x 5,5cm)
WeightRX-CLW: 1 kg
RX-CLW-OO: 400 g
Material303 Stainless Steel

Buy Now
Products

Product
Price
Quantity
130158
RX-CLW Constant Load Weight for A, B and O Durometers
€ 164,00
130159
RX-CLW-OO Constant Load Weight for OO and OOO Durometers
€ 164,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
