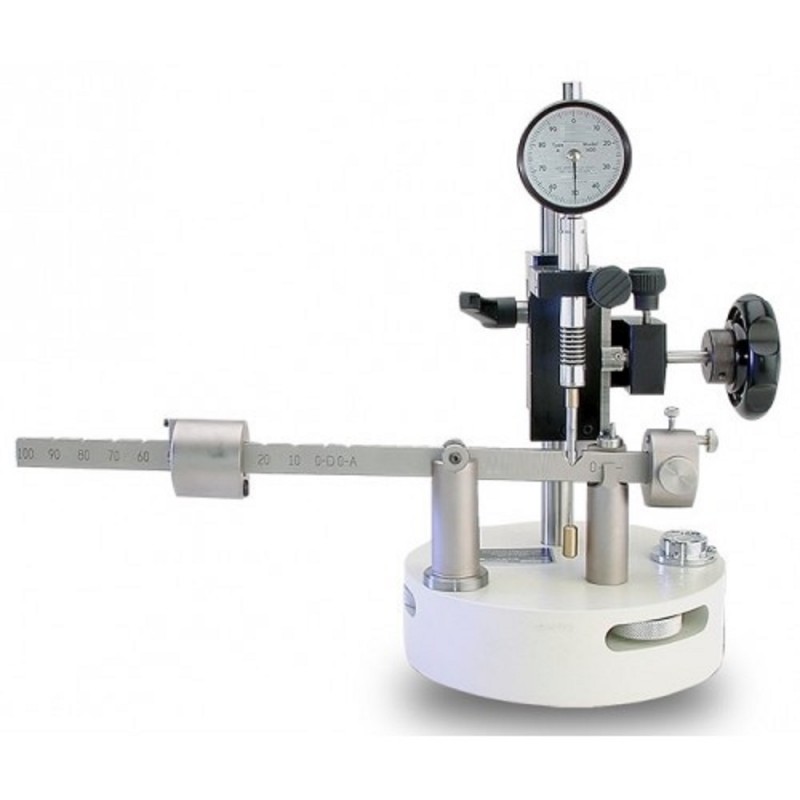

RX-RDC Durometer Calibrator

The RX-RDC durometer calibrator was designed to help durometer users obtain in-house calibration ability. The calibrator comes complete with weights for calibrating spring loads of gauges in the A, B, C, D, DO and O durometer scales. It also includes an adapter which gives the RX-RDC the ability to calibrate durometers from many different manufacturers. The RX-RDC is a great way for durometer users to cut the costs of sending durometers out for calibration at the recommended yearly intervals.

From the beginning, the RX-RDC calibrator was designed to be simple to use. Unlike a conventional scale, it doesn’t require the fabrication on an exotic fixture to hold the gauge, and the user doesn’t have to perform any complicated calculations to determine if a gauge is in calibration. With the RX-RDC, simply secure the gauge in the clamp and slide the weight to the appropriate point on the scale; if the gauge reads within +/-1 of the point indicated on the scale, it’s in calibration.

The RX-RDC offers quality unparalleled by any other. With its thick steel base, oversize stainless steel column, and a weight of appr. 13 kg, the RX-RDC is the sturdiest calibrator made. All components are precision CNC machined to exacting tolerances, and then plated or painted to insure long life. The RX-RDC comes to you fully calibrated with documentation traceable to NIST. It also comes with instructions and technical notes covering specifics about durometer calibration. The RX-RDC calibrator is made and assembled in the U.S.A.
