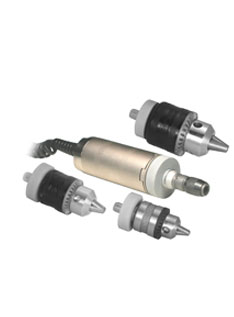

The G1016 and G1017 attachments are developed to work with the R51 torque sensor featuring a unique interchangeability.
The G1016 comes in three sizes for different sample sizes, G1017 is a bit holder suited for 6,3mm bits.
These attachments connect to the load cell with 2 pins, one center pin and an offset pin that is fixed in the load cell, and a locking collar.
Due to the increased possibility of overload, the G1016-2 and -3 attachments are recommended for use only with an MR51-12 or higher capacity model.
| Model | ØA mm | ØB mm | ØC mm | weight gram |
|---|---|---|---|---|
| G1016-1 | 632,4 | 4,7 | 0,7 - 6,3 | 120 |
| G1016-2 | 706,6 | 4,7 | 1,6 - 9,5 | 160 |
| G1016-3 | 838,2 | 4,7 | 2 - 12,7 | 300 |
| G1017 | 497,8 | 4,7 | 6,3 (1/4 hex) | 110 |
| Locking collar diameter is 35,6 mm | ||||
| Capacity Nm (lbFin): | 11.5 Nm |
| Weight kg (lb): | G1016-1: 120 gr G1016-2: 160 gr G1016-3: 300 gr G1017: 110 gr |
