G1078 Miniature Filament Grip

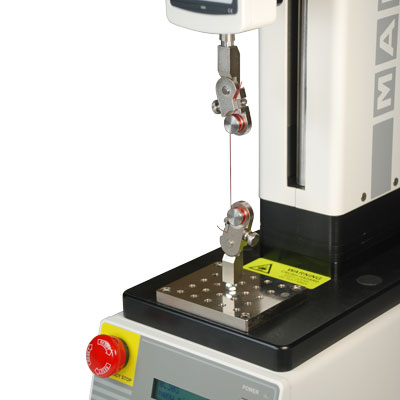

The G1078 Miniature Filament Grip is an innovative fixture designed for the precise and safe testing of fine filaments and fibers that are common in various industries such as textiles, aerospace, and materials science. This specialized grip is developed to perform precise tensile strength measurements on materials down to a very fine scale, in conjunction with a force gauge, load cell, or test stand.

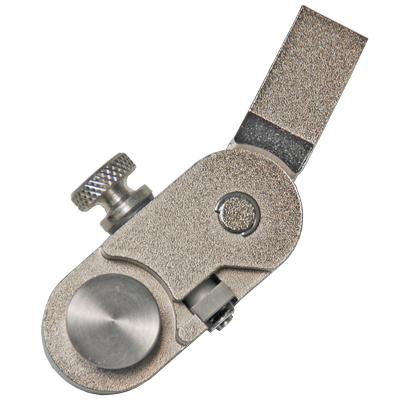

Crafted with high-quality materials and precision engineering, the G1078 grip features a unique design to accommodate the delicate nature of thin wires and filaments. It consists of a spindle around which the filament is wrapped, followed by a clamp, which securely but gently holds the filaments in place during testing without causing any damage or slippage. The part that clamps the test sample can move relative to its attachment to the sensor to ensure optimal alignment during the test.
Whether it's assessing the strength of microfibers for aerospace applications or testing the durability of intricate textile yarns, the G1078 Miniature Filament Grip provides the precision and reliability necessary for accurate data collection and analysis. It is an indispensable tool for industries where the quality and performance of these materials play a crucial role in qua;ity control, product development and safety.
- Securely handles wires ranging from 0 to 2.5 mm
- Ensures sample alignment under load with a swiveling bottom end
- Optimizes sample support by anchoring it just below the clamp on a bollard
- Bollard / capstan design effectively secures small diameter wires and filaments
- Includes #10-32 M/M stud with jam nuts.
IN [MM]
| A | B | C | D | E | F | G |
Capacity |
Weight |
|---|---|---|---|---|---|---|---|---|
|
2.38 [60.4] |
1.09 [27.7] |
0.10 [2.5] |
0.10 [2.5] |
0.55 [14.1] |
Ø0.45 [11.4] |
0.20 [5.1] |
250 (50) |
0.03 (0.06) |
| Capacity : | 250 N |
| Weight : | 30 g |
