G1102 Large Wire / Rope Grip


Made in the USAThe G1102 large Wire/Rope Grip is engineered to meet the demands of wire, rope, and yarn pull testing.
This fixture is used for assessing the strength of materials or evaluating their durability.
The maximum capacity is 5 kN with a maximum sample diameter of 5,8 mm.

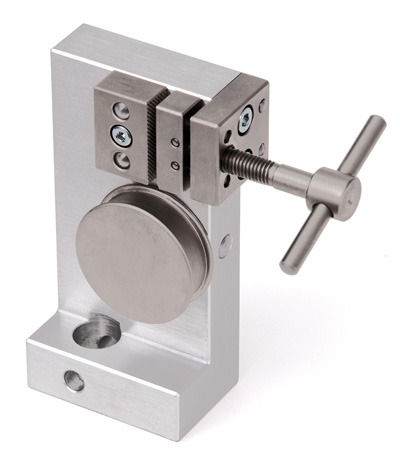

The G1102 features a bollard / capstan design, the sample is wrapped around the bollard after which the free end is clamped in the adjustable vice.
This ensures the sample remains in place during testing resulting in accurate and repeatable test results.

It comes equipped with an integrated eye end mount, making it easier to attach this fixture securely to a force gauge, load cell or test stand.


Features
  • Bollard / capstan design effectively secures rope, wire and other samples.
  • Integrated eye end mounting.
  • Designed for wire, rope, and yarn pull testing applications.

Dimensions
G1102 Large Wire / Rope Grip
Dimensions-G1102 Large Wire / Rope Grip


All sizes are noted in inch with metric sizes in [mm] behind.


Specifications
Capacity:5 kN
Maximum sample diameter:5.3 mm
Weight:0.8 kg
