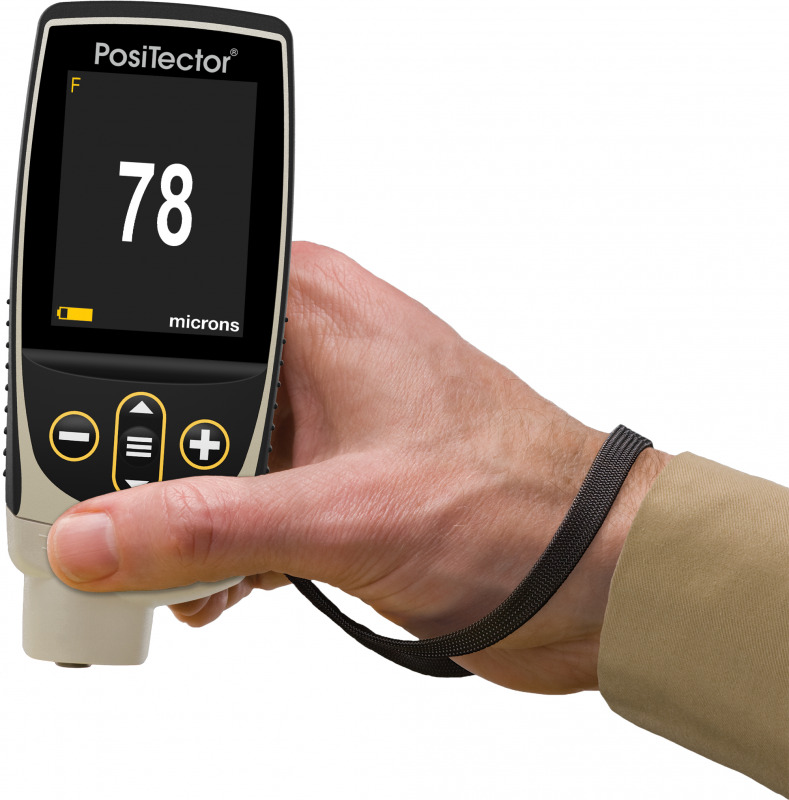

PosiTector 6000IP Intergral Probe Models


Made in the USARange: 0 - 1500 µm
Resolution: 0,1 µm
Substrates: F, N or FN

The 6000IP Series General Purpose Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous and or non-ferrous metals accurately and quickly using magnetic and eddy current principles.

The 6000-IP's Integral Probe design offers maximum convenience and simplicity allowing for one-hand use, eliminating the external probe and cable which can be cumbersome in certain applications.

The 6000IP is available in Standard (1) or Advanced (3) configuration. The standard model has a monochrome display, 1000 reading memory and USB data output. The Advanced model adds a high contrast color LCD display, Scan Mode, Real-Time Graphing Bluetooth output and more.



Probe - Feature Comparison Chart
Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -

Complete Kit
ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Probe Specifications



Gage
Models
F1, F2, F3
N1, N2, N3
FN1, FN2, FN3
FT1, FT2, FT3
Range 0 - 60 mils 0 -250 mils
0 - 1500 um 0 - 6 mm
Accuracy
+ (0.05 mils + 1%)
0 - 2 mils

+ (0.1 mils + 1%)
> 2 mils
+ (0.5 mils + 1%)
0 - 100 mils

+ (0.5 mil + 3%)
> 100 mils
+ (1 um + 1%)
0 - 50 um

+ (2 um + 1%)
> 50 um

+ (0.01 mm + 1%)
0 - 2.5 mm

+ (0.01 mm + 3%)
> 2.5 mm

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

Probe Interchangeability


Specifications
Measuring principle:Magnetic induction principle (Ferrous)
Eddy-current principle (Non-Ferrous)
DisplayBacklit & Reversible LCD
Data OutputIR & USB - "2" & "3" Models
Bluetooth - "3" Models
Resolution:0,1 µm
Surface Temp.Maximum 120 °F / 49 °C
Power3 AAA batteries, Included
Dimensions146 x 64 x 31 mm
Weight165 gr. without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included

Related Products

PosiTector 6000GP Coating Thickness Gauge


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000GP Coating Thickness Gauge

PosiTector 6000MP Micro Probe Models


  • High Resolution mode increases the displayed resolution for use on applications that require greater precision

More details

PosiTector 6000MP Micro Probe Models

PosiTector 6000TC Thick Coating Model


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000TC Thick Coating Model

PosiTector 6000TCX Extra Thick Coating Models


  • For extra thick paint and coatings up to 13 mm (150-500 mils)

More details

PosiTector 6000TCX Extra Thick Coating Models

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Buy Now
Products

Product
Price
Quantity
132526
BDYSTD PosiTector-1 Body Only Standard
€ 342,00
132528
BDYADV PosiTector-3 Body Only Advanced
€ 832,00

Accessories

Product
Price
Quantity
132529
PRBF 6000 F Integral Probe for PosiTector
€ 419,00
132530
PRBN 6000 N Integral Probe for PosiTector
€ 499,00
133072
PRBFN 6000 FN Integral Probe for PosiTector
€ 838,00
132531
PRBFT 6000 FT Integral Probe for PosiTector
€ 537,00
133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 408,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 24,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 55,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
