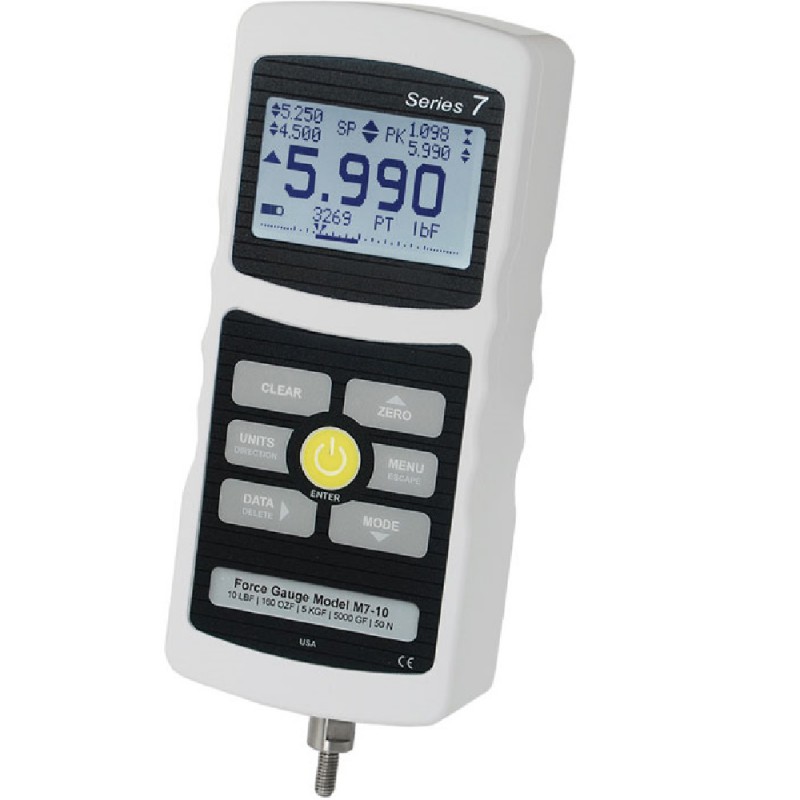

Series-7 Professional Digital Force Gauge


Made in the USA

The Professional Series-7 Force Gauges are among the most sophisticated force gauges available.
Like the Series 5 the Series-7 is compatible with a large range of motorized and manual test stands like the ESM-303 to 1500 series.
Combined with a wide variety of attachments this versatile gauge creates reliable test results with an accuracy of ±0,1% combined with a sampling rate of 14.000 Hz.

Available in 11 ranges from 0,5 kN (0.12 lbF) to 2,5 kN (500 lbF) the Series-7 Force Gauges cover a broad force measurement spectrum.

Equipped with the same features as the Series-5 Force Gauges the Series-7 adds, among other features, a larger memory of up to 5000 readings, a higher sampling rate and high speed continues data capture.
Other added features are user defined Unit of Measurement and a coefficient of friction (COF) unit of measurement.
The Series-7 Force Gauges can be equipped with a foot switch that can automate common force gauge and indicator functions.

Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.

The Digital Mark-10 Series Force gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.

All gauges except for the Series-7 come with MESUR® Lite data acquisition software.
MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • High-speed sampling rate: 14.000 Hz
  • Averaging mode - calculates average readings over time
  • Continuous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Individual data point memory for up to 5.000 data points, downloadable to PC
  • Sample break detection with auto functions, including stopping movement on the ESM301 test stand
  • Footswitch function - configure up to 3 functions per footswitch activation
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1st / 2nd peak detection
  • Automatic output / data storage / zeroing upon various event completions
  • 7 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
  • Programmable set points, with indicators and outputs
  • Password protection, configurable for individual keys and calibration
  • Includes NIST Traceable Calibration Certificate with 10 pt data. ISO-17025 certificate option available
  • 3 Year warranty

Force Ranges, Capacity & Resolutions
ModellbFozFkgFgFNkNmN
M7-0120,12 x 0,000022 x 0,0005-50 x 0,010.5 x 0,0001-500 x 0,1
M7-0250,25 x 0,000054 x 0,001-100 x 0,021 x 0,0002-1000 x 0,2
M7-050,5 x 0,00018 x 0,002-250 x 0,052,5 x 0,0005-2500 x 0,5
M7-22 x 0,000532 x 0,011 x 0,00021000 x 0,210 x 0,002--
M7-55 x 0,00180 x 0,022,5 x 0,00052500 x 0,525 x 0,005--
M7-1010 x 0,002160 x 0,055 x 0,0015000 x 150 x 0,01--
M7-2020 x 0,005320 x 0,110 x 0,00210000 x 2100 x 0,02--
M7-5050 x 0,01800 x 0,225 x 0,00525000 x 5250 x 0,05--
M7-100100 x 0,021600 x 0,550 x 0,0150000 x 10500 x 0,1--
M7-200200 x 0,053200 x 1100 x 0,02-1000 x 0,21 x 0,0002-
M7-500500 x 0,18000 x 2250 x 0,05-2500 x 0,52.5 x 0,0005-

Load Cell Thread Specifications
GaugeM7-012 – M7-100M7-200 - M7-500
Load Cell Thread #10-32 UNF5/16-18 UNC

LCD Display

Display


Reversible Housing

Reversible housing


Specialized Gauge Featuress

Series-7 gauges feature several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs. The following unique features are highlighted:

Automatic data output

High Speed Data Capture & Storage
Series-7 can capture and store up to 5.000 continuous data points at a rate of up to 14.000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others. Data from the storage buffer can be exported to data collection software such as MESUR®gauge for further analysis and graphing. Using a Series-7 gauge could replace cumbersome and expensive data acquisition hardware and software.

Footswitch

Footswitch Command String
Integrate your footswitch / automation system with a Series-7 gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation. Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.

High speed data capture and storage

Automatic Data Output / Save / Zero / I/O Pin Toggle
Upon completion of several event types, the Series-7 can perform the following productivity-enhancing functions:

  • Automatically save the peak reading to memory.
  • Transmit the peak reading via USB, RS-232, or Mitutoyo output.
  • Zero the display. Toggle an I/O pin, for example to stop movement of an ESM303 test stand.

Applicable events include:

  • Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall).
  • Completion of an averaging sequence.
  • External trigger (ex. switch activation).
  • 1st / 2nd peak capture (ex. tensile testing).

Unit of measurement

User-defined Unit of Measurement
Series-7 gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications:

  • To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm.
  • To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

Complete Kit

Series-7 Force Gauges are shipped as shown at left, and include the following accessories:

  • Extension rod *
  • Hook *
  • Cone *
  • Chisel *
  • V-Groove *
  • Flat *
  • Coupling *
  • Carrying case
  • USB cable
  • AC adapter
  • Battery
  • Certificate of calibration with data

* The specific accessory depends on the force gauge model. See Included Accessories section for details.



Included accessories
PictureAccessoryM7-012 - M7-20M7-50 - M7-100M7-200 - M7-500
Extension RodExtension RodG1024G1024G1031
ConeConeG1026G1026G1033
ChiselChiselG1025G1025G1032
V-GrooveV-GrooveG1027G1027G1034
FlatFlatG1029G1029G1036
HookHookG1028G1038G1035
CouplingCoupling-G1039G1037

Dimensions
Dimensions-Series-7


Series-7 Force Gauge models M7-012 tot M7-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.


Video


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Double Handle Grip Double Handle Grips for Force Gauges


  • Double Handle Grips for Force Gauges

More details

Double Handle Grip Double Handle Grips for Force Gauges 126084

Single Handle Grips For Force Gauges


  • Single Handle Grips For Force Gauges

More details

Single Handle Grips For Force Gauges 126085

Specifications
Accuracy±0,1% of full scale ±1 digit
Sampling rate14.000 Hz
Power
AC or rechargeable battery.

Multi-step low battery indicator is displayed.
Gauge shuts off automatically when power is too low.
Battery lifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Meaurement unitslbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs USB/RS-232: Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Including Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0,25% of full scale at capacity
General purpose:Three open drain outputs, one input
Set points: Three open drain lines
Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload200% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only)M7-012 - M7-100: 0,45 kg [1.0 lb]
M7-200 - M7-500: 0,54 kg [1.2 lb]
Shipping weightM7-012 - M7-100: 1,4 kg [3.0 lb]
M7-200 - M7-500: 1,5 kg [3.2 lb]
Included AccessoriesCarrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Environmental requirements4 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty3 years

Force Gauge comparison table
 Series-7 ProfessionalSeries-5 AdvancedSeries-4 PerformanceSeries-3 BasicSeries-2 Economical
Accuracy±0,1%±0,1%±0,2%±0,3%±0,5%
Sampling rate14.000 Hz7.000 Hz3.000 Hz2.000 Hz500 Hz
Resolution1/50001/50001/20001/10001/1000
Units of measurementlbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, gF, kgF, N (depending on model)lbF, kgF, N
OutputsUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSBNo
- RS-232Configurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudNoN/A
- USBConfigurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudN/A
- Mitutoyo (Digimatic)Serial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesNoN/A
- Analog±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tensionN/ANo
- General purpose I/OThree open drain outputs, one inputThree open drain outputs, one inputThree open drain outputs, one inputN/ANo
- Set pointThree open drain linesThree open drain linesThree open drain linesN/ANo
Mesur-Lite software includedYesYesYesYesNo
Data output functionalityAutomatic output or by pressing DATA button, or requesting from a PC or other device.Automatic output or by pressing DATA button, or requesting from a PC or other device.By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).N/A
ASCII command set for external controlFull command setFull command set“?” only (request current reading)“?” only (request current reading)N/A
Interface w/MESUR® gauge and MESUR® LiteFull communicationFull communicationSingle point or continuous data output onlySingle point or continuous data output onlyN/A
Interface with ESM303 / 750 / 1500 test standsFull communication, including PC controlFull communication, including PC controlLimited to force data, overload protection, and force set pointsN/ANo
Data memory5.000 readings, with output1.000 readings, with output50 readings, with outputNoNo
Data memory deletionAny individual data point, or clear allAny individual data point, or clear allAny individual data point, or clear allN/AN/A
Statistic calculations and output to PCMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputN/AN/A
Break detectionYesNoNoNoNo
1st / 2nd peak detectionYesNoNoNoNo
Programmable footswitch command stringYesNoNoNoNo
Averaging modeYesYesNoNoN/A
External trigger modeYesYesNoNoNo
Analog load bar graph shown on displayYesYesYesYesNo
Set points (for pass / fail indication)Yes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsNo
Password protectionYes, for calibration and individual keysYes, for calibration and individual keysNoNoNo
Peak readings always displayedYesYesYesYesNo (Peak mode must be selected)
Programmable audible tonesYesYesYesYesNo
Calibration procedureConfigurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)
Overload outputsDedicated pins for tension and compressionDedicated pins for tension and compressionDedicated pins for tension and compressionNoN/A
Safe overloads150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)150% of full scale (display shows warning at 110% and above)
