WTT-ESM Motorized Wire Terminal Tester with Programmable Active Force Control
The WTT-ESM Motorized Wire Terminal Tester with Programmable Active Force Control is no longer available and has been replaced by F105 / F305 / F505 / F505H.
Click here to see the F105 / F305 / F505 / F505H.

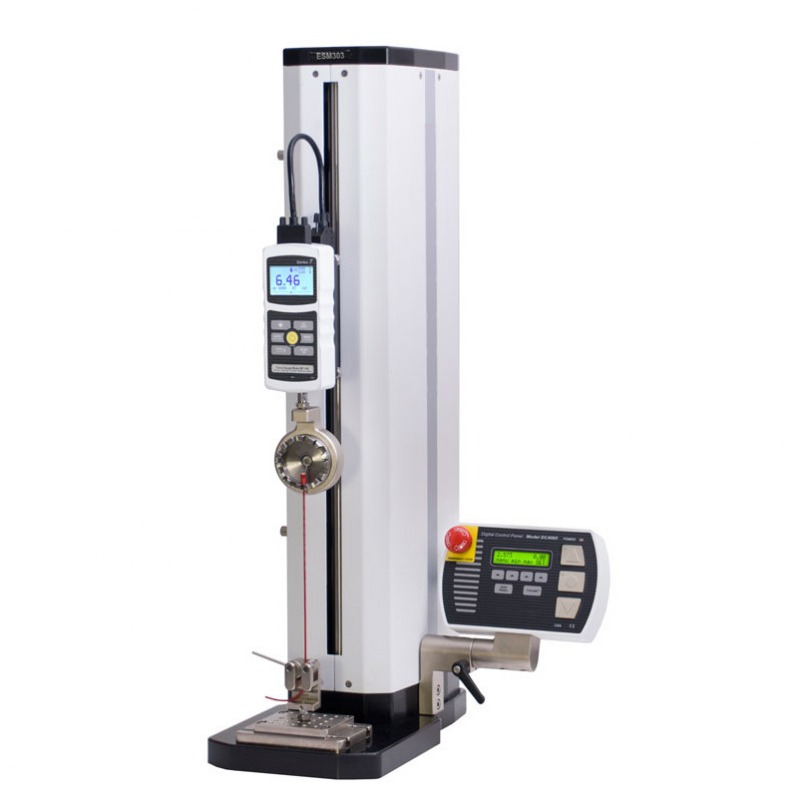

The WTT-ESM303E Motorized Wire Terminal Test System is a precision testing solution for wire terminal testing applications up to 1.5 kN. This system is specifically designed for meeting ASTM test standards that require a test sample to maintain a specific load for a set interval (typically 1 minute).
Standard USB and RS232 output allow operators to transfer data to a PC or data collection system.
- LCD display with UP, DOWN, STOP and emergency stop buttons and soft keys
- RS-232, Mitutoyo and analog outputs
- Performs Test Procedures According to UL486A and SAE/USCAR-21
- Integrated travel limit switches
- Removable fixture mounting plate with matrix of threaded holes
- Mounting holes for bench mounting
- Password protection of test parameters, to prevent unauthorized changes
- Stepper motor-driven, produces 0% speed variation load
- Unique mechanical design significantly reduces column blending
- 3 Year Warranty
- CE Certified
| Capacity | Up to 24 in / mm: 300 lbF / 1.5 kN >24 in / mm: 200 lbF / 1 kN |
| Standard Speed Range | 0.6 - 13 in/mm (13 - 330 mm/min) |
| Maximum Travel | 11.5 in (292 mm) |
| Speed Setting Accuracy | ±0.2% |
| Speed Variation with load | ±0% (Stepper motor driven) |
| Limit switch repeatability | 0.001 in (0.03 mm) |
| Power | Universal input 80-240 VAC, 50/60 Hz |
| Weight (without options) | 14,5 kg (32 lbs) |
| Included accessories | Ext. rod, small hook, medium hook, #10-32 coupler, compression plate, gauge mounting hardware, tool ki |
The WTT-ESM-STD is sold as a complete test system that includes the following items;
1. ESM-303E ESM-303E Programmable Test Stand
2. Series 4 Digital Force Gauge
3. G1076 - Wire Terminal Grip
4. G1002 - Wire Cam Grip
*Additional 09-1214 cable required
The WTT-ESM-ADV also includes:
5. 09-1214 - Multifunction cable, gauge to ESM303
6. AF014 - Cycling / dwell time
7. AF020 - Load Holding
8. Series 5 Digital Force Gauge instead of the M4 Force Gauge Supplied with WTT-ESM-STD
Series-5 Advanced Digital Force Gauge
- ±0,1% accuracy
- High-speed 7.000 Hz peak sampling rate
- 1.000-point data memory with statistics and outputs
More details
ESM303 Motorized Teststand with PC Control
- Selectable speed setting
- Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
More details
